Component Location Overview - Abs/Esp
Courtesy of AUDI OF AMERICA, LLC

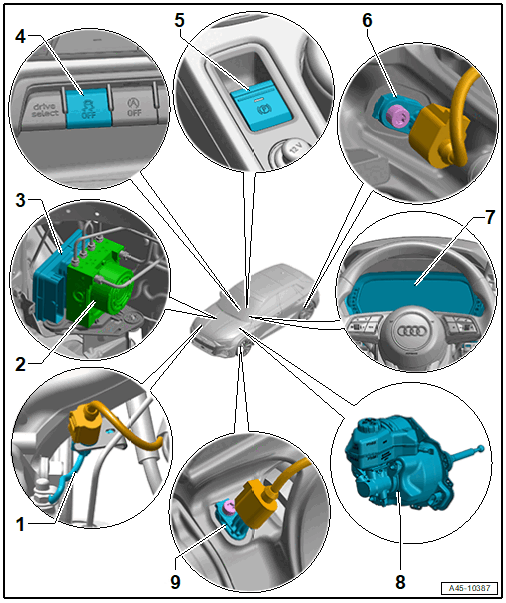

- Brake Pad Wear Sensor
- Right Front Brake Pad Wear Sensor -G35-
- Left Front Brake Pad Wear Sensor -G34- (depending on the model)
- Left Rear Brake Pad Wear Sensor -G36- (installed depending on the model)
- ABS Hydraulic Unit -N55-
- Component location: in the right rear engine compartment
- with
- Brake Pressure Sensor 1 -G201-
- ABS Hydraulic Pump -V64-
- Valve block with intake and exhaust valve
- The components cannot be replaced separately.
- Refer to OVERVIEW - CONTROL MODULE AND HYDRAULIC UNIT
- ABS Control Module -J104-
- Component location: in the right rear engine compartment
- with
- Transverse Acceleration Sensor -G200-
- Rotation Rate Sensor -G202-
- Longitudinal Acceleration Sensor -G251-
- Electromechanical Parking Brake Control Module -J540-
- The components cannot be replaced separately.
- Refer to OVERVIEW - CONTROL MODULE AND HYDRAULIC UNIT
- ASR/ESP Button -E256-
- Parking Brake Button -EX12-
- Rear Speed Sensor
- Right Rear ABS Wheel Speed Sensor -G44-
- Left Rear ABS Wheel Speed Sensor -G46-
- Instrument Cluster -KX2-
- with
- ABS Indicator Lamp -K47-
- Brake System Indicator Lamp -K118-
- Parking Brake Indicator Lamp -K139-
- The indicator lamps cannot be replaced separately
- Refer to OVERVIEW - INSTRUMENT CLUSTER
.
- Brake Booster -NX6-
- Front Speed Sensor
- Right Front ABS Wheel Speed Sensor -G45-
- Left Front ABS Wheel Speed Sensor -G47-
