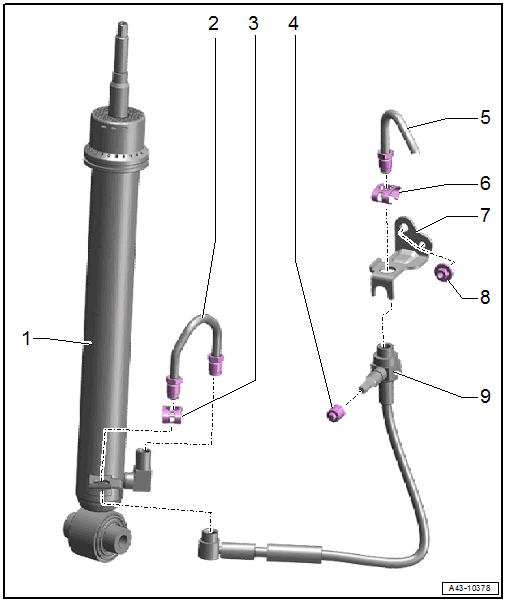

Overview - Rear Shock Absorbers
WARNING: This page is about a different car, the 2025 Audi S5 Sportback, 2025 Audi RS 5 Sportback, and 2025 Audi A5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- DRC Shock Absorber
- Removing and Installing. Refer to SHOCK ABSORBER, REMOVING AND INSTALLING .
- Hydraulic Line
- Union bolt, 14 Nm
- Spring
- Replace if damaged
- Protective Dust Cap
- 1.5 Nm
- Hydraulic Line
- Union bolt, 14 Nm
- Spring
- Replace if damaged
- Bracket
- Nut
- 9 Nm
- Hose/Line Assembly
- With extract/fill valve
