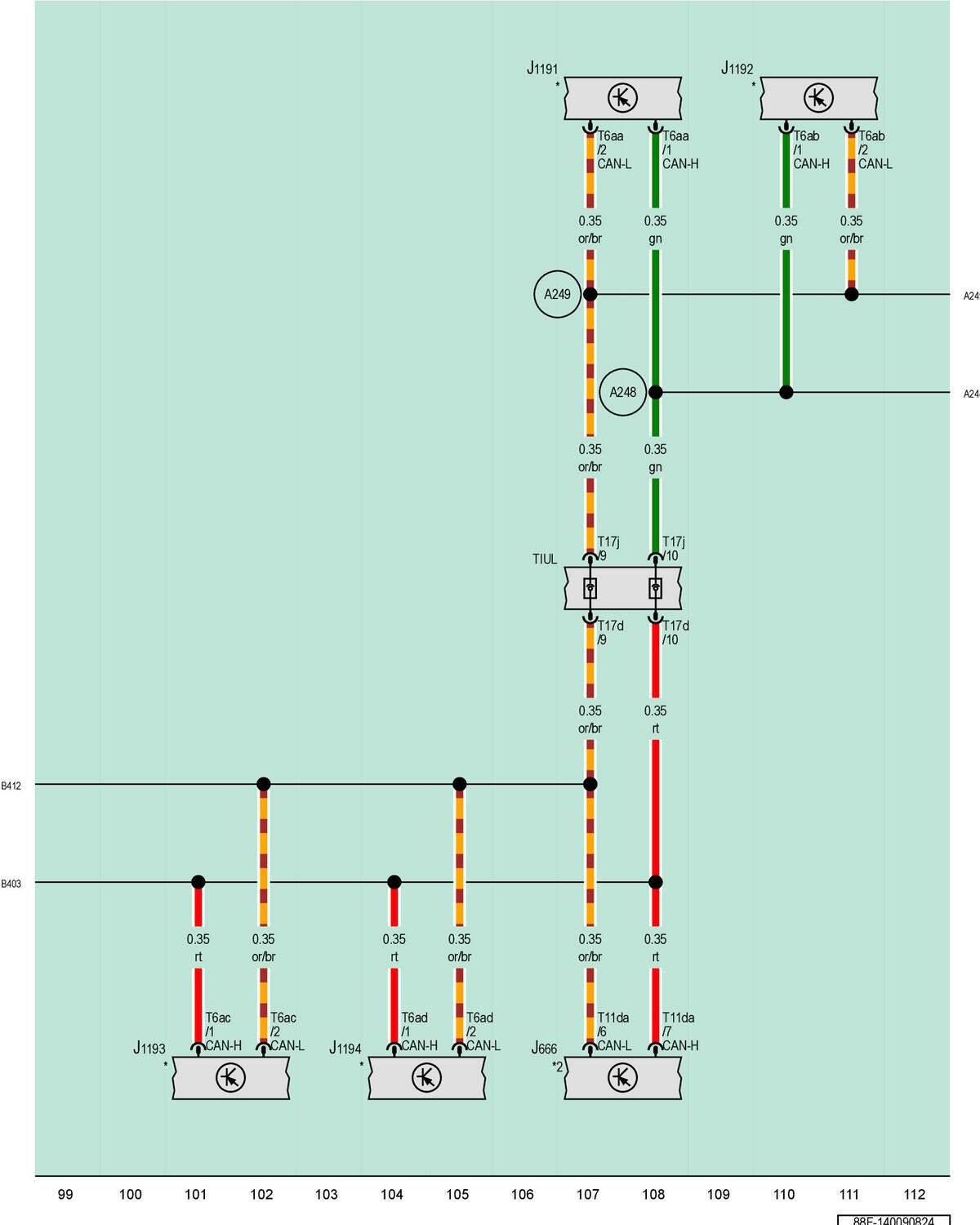

Internet Access Control Module, Burglary Protection Control Module, Burglary Protection Control Module 2, Burglary Protection Control Module 3, Burglary Protection Control Module 4

Courtesy of AUDI OF AMERICA, LLC

J666

Internet Access Control Module

J1191

Burglary Protection Control Module

J1192

Burglary Protection Control Module 2

J1193

Burglary Protection Control Module 3

J1194

Burglary Protection Control Module 4

T6aa

6-Pin Connector, Black

T6ab

6-Pin Connector, Black

T6ac

6-Pin Connector, Black

T6ad

6-Pin Connector, Black

T11da

11-Pin Connector, Black

T17d

17-Pin Connector, Red

T17j

17-Pin Connector, Red

TIUL

Coupling Point in Interior, Bottom Left

A248

CAN Bus High Connection 2 (in Engine/Motor Compartment Wiring Harness)

A249

CAN Bus Low Connection 2 (in Engine/Motor Compartment Wiring Harness)

B403

Comfort System CAN Bus, High Connection 7 (in Main Wiring Harness)

B412

Comfort System CAN Bus, Low Connection 7 (in Main Wiring Harness)

*

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*2

Refer to Applicable Communication Wiring Diagram
