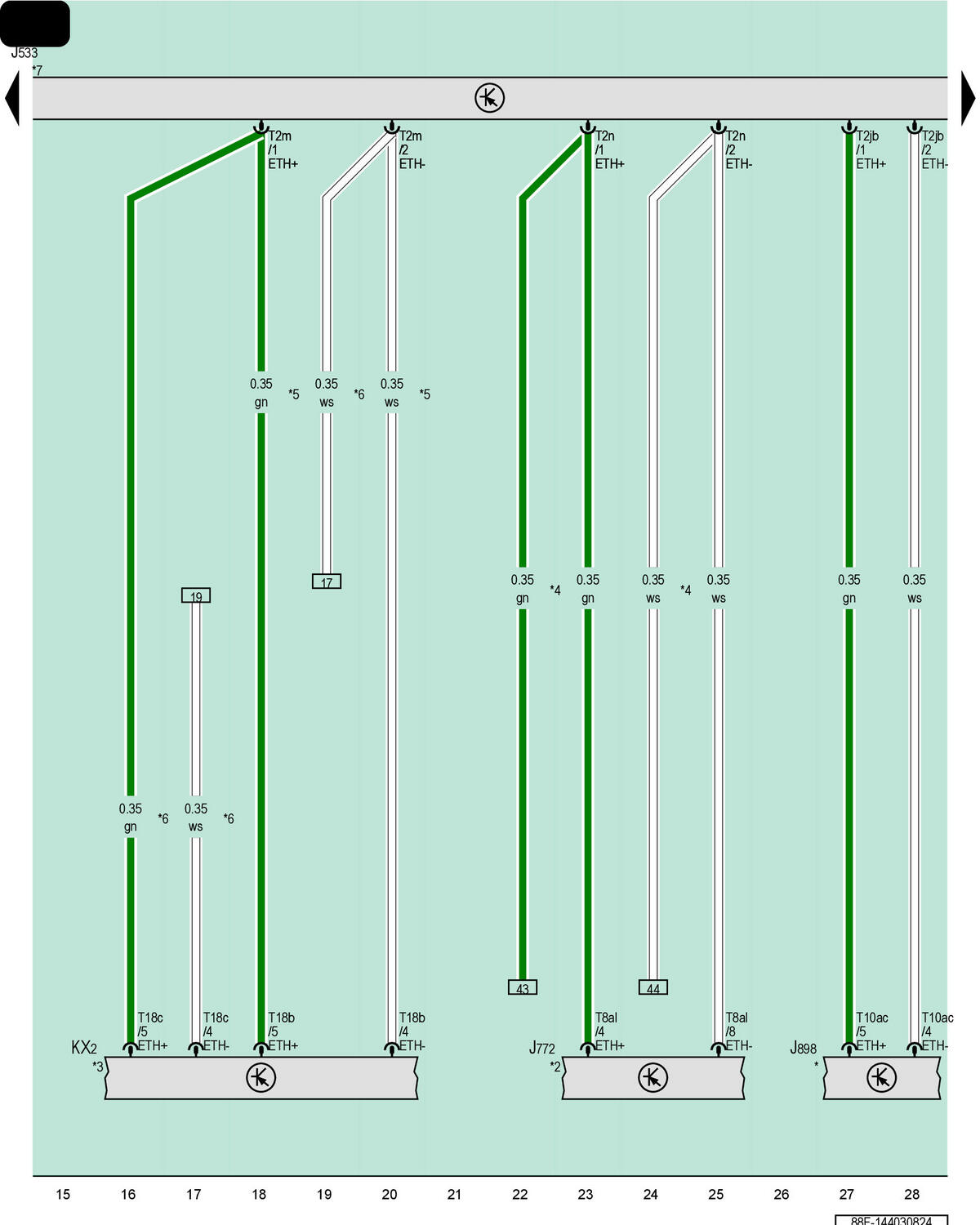

Data Bus On Board Diagnostic Interface, Rearview Camera System Control Module, Windshield Projection Head Up Display Control Module, Instrument Cluster
J533
Data Bus on Board Diagnostic Interface
J772
Rearview Camera System Control Module
J898
Windshield Projection Head Up Display Control Module
KX2
Instrument Cluster
T2jb
2-Pin Connector, White
T2m
2-Pin Connector, White
T2n
2-Pin Connector, White
T8al
8-Pin Connector, Black
T10ac
10-Pin Connector, Black
T18b
18-Pin Connector, Black
T18c
18-Pin Connector, Black
*
Refer to Applicable Windshield Projection Wiring Diagram
*2
Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
*3
Refer to Applicable Wiring Diagram for Instrument Cluster
*4
For Vehicles with Peripheral Camera
*5
For Vehicles with Windshield Projection
*6
For Vehicles Without Windshield Projection
*7
Refer to Applicable Wiring Diagram for Data Bus Networking
