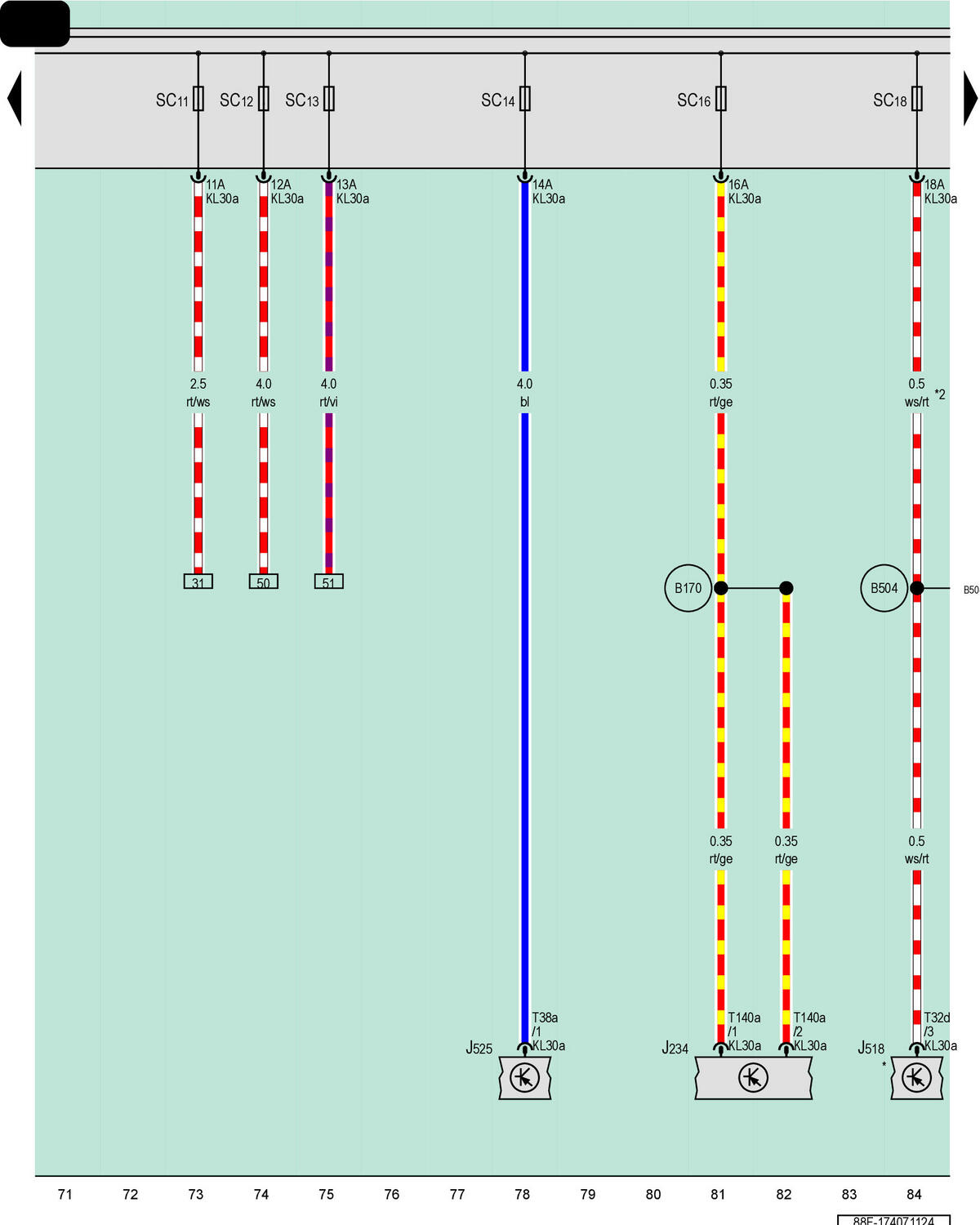

Airbag Control Module, Access/Start Authorization Control Module, Digital Sound System Control Module, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

J518

Access/Start Authorization Control Module

J525

Digital Sound System Control Module

SC

Fuse Panel C

SC11

Fuse 11 (On Fuse Panel C)

SC12

Fuse 12 (On Fuse Panel C)

SC13

Fuse 13 (On Fuse Panel C)

SC14

Fuse 14 (On Fuse Panel C)

SC16

Fuse 16 (On Fuse Panel C)

SC18

Fuse 18 (On Fuse Panel C)

T32d

32-Pin Connector, Gray

T38a

38-Pin Connector, Black

T140a

140-Pin Connector, Yellow

B170

Positive Connection 2 (30) (in Interior Wiring Harness)

B504

Positive Connection 8 (30a) (in Interior Wiring Harness)

*

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*2

Diameter Depends on Equipment
