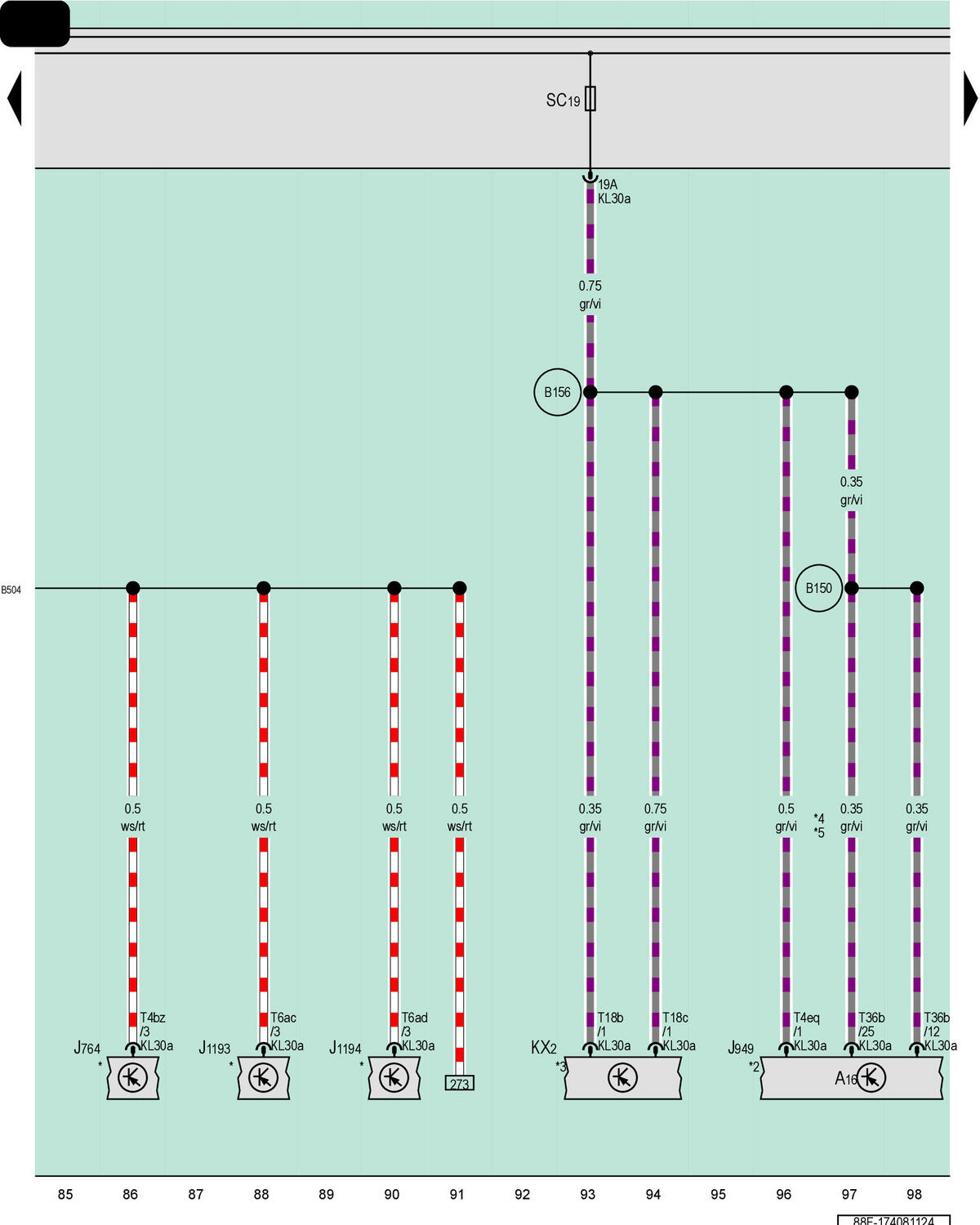

Electronic Steering Column Lock Control Module, Control Module For Emergency Call Module And Communication Unit, Burglary Protection Control Module 3, Burglary Protection Control Module 4, Instrument Cluster, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

A16

Telematics Emergency Battery

J764

Electronic Steering Column Lock Control Module

J949

Control Module for Emergency Call Module and Communication Unit

J1193

Burglary Protection Control Module 3

J1194

Burglary Protection Control Module 4

KX2

Instrument Cluster

SC

Fuse Panel C

SC19

Fuse 19 (On Fuse Panel C)

T4bz

4-Pin Connector, Black

T4eq

4-Pin Connector, Black

T6ac

6-Pin Connector, Black

T6ad

6-Pin Connector, Black

T18b

18-Pin Connector, Black

T18c

18-Pin Connector, Black

T36b

36-Pin Connector, Black

B150

Positive Connection 2 (30a) (in Interior Wiring Harness)

B156

Positive Connection 30a (in Interior Wiring Harness)

B504

Positive Connection 8 (30a) (in Interior Wiring Harness)

*

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*2

Refer to Applicable Communication Wiring Diagram

*3

Refer to Applicable Wiring Diagram for Instrument Cluster

*4

For Vehicles with China Equipment

*5

From September 2024
