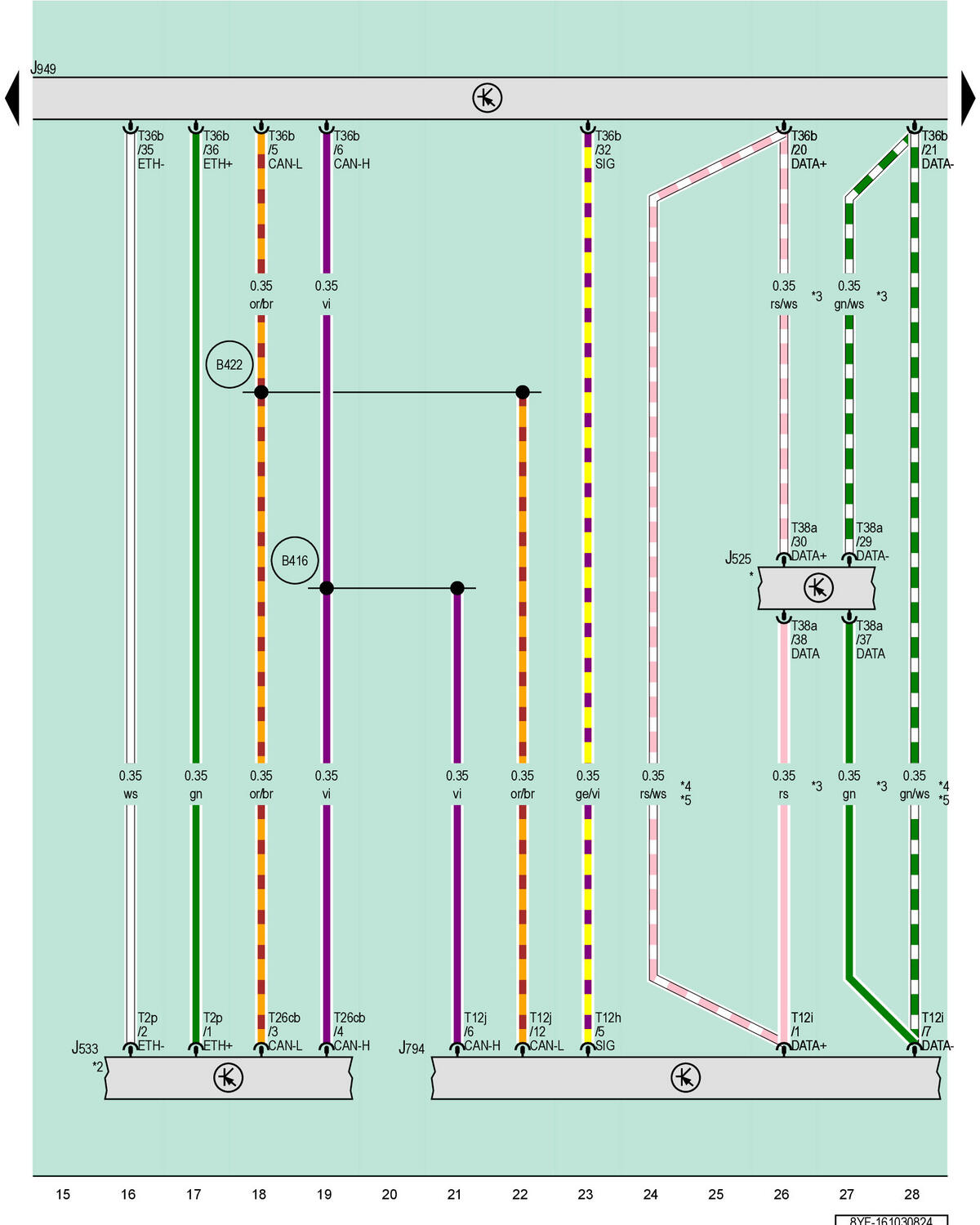

Digital Sound System Control Module, Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit
J525
Digital Sound System Control Module
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
J949
Control Module for Emergency Call Module and Communication Unit
T2p
2-Pin Connector, White
T12h
12-Pin Connector, Blue
T12i
12-Pin Connector, Green
T12j
12-Pin Connector, Gray
T26cb
26-Pin Connector, Black
T36b
36-Pin Connector, Black
T38a
38-Pin Connector, Black
B416
Infotainment CAN Bus High Connection 2 (in Main Wiring Harness)
B422
Infotainment CAN Bus Low Connection 2 (in Main Wiring Harness)
*
Refer to Applicable Sound System Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Data Bus Networking
*3
For Vehicles with an Amplifier
*4
For Vehicles Without an Amplifier
*5
Different Wire Color Possible
