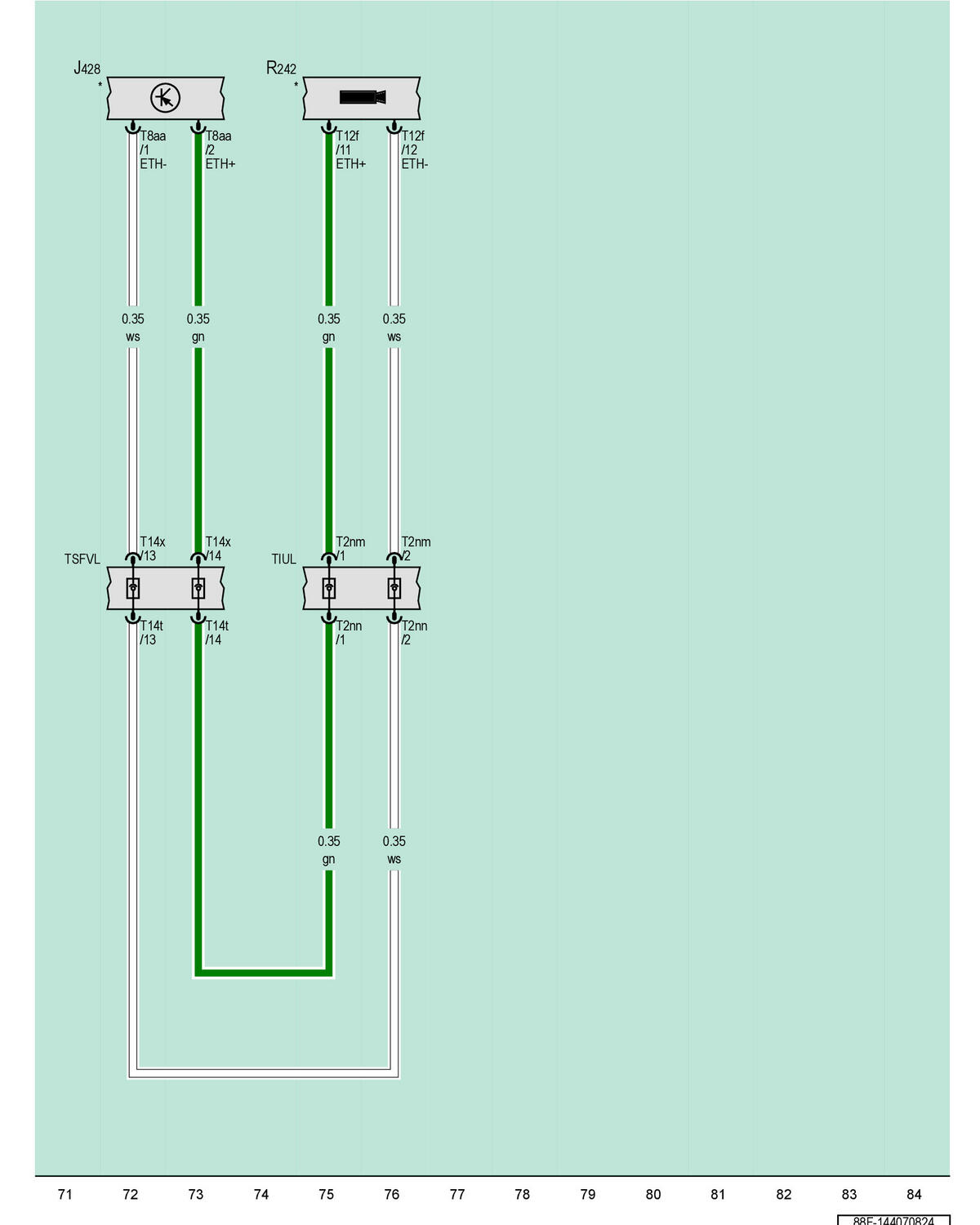

Control Module For Adaptive Cruise Control, Driver Assistance Systems Front Camera

Courtesy of AUDI OF AMERICA, LLC

J428

Control Module for Adaptive Cruise Control

R242

Driver Assistance Systems Front Camera

T2nm

2-Pin Connector, White

T2nn

2-Pin Connector, White

T8aa

8-Pin Connector, Black

T12f

12-Pin Connector, Brown

T14t

14-Pin Connector, Black

T14x

14-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

TSFVL

Coupling Point on Left Front Bumper

*

Refer to the Applicable Assistance Systems Wiring Diagram
