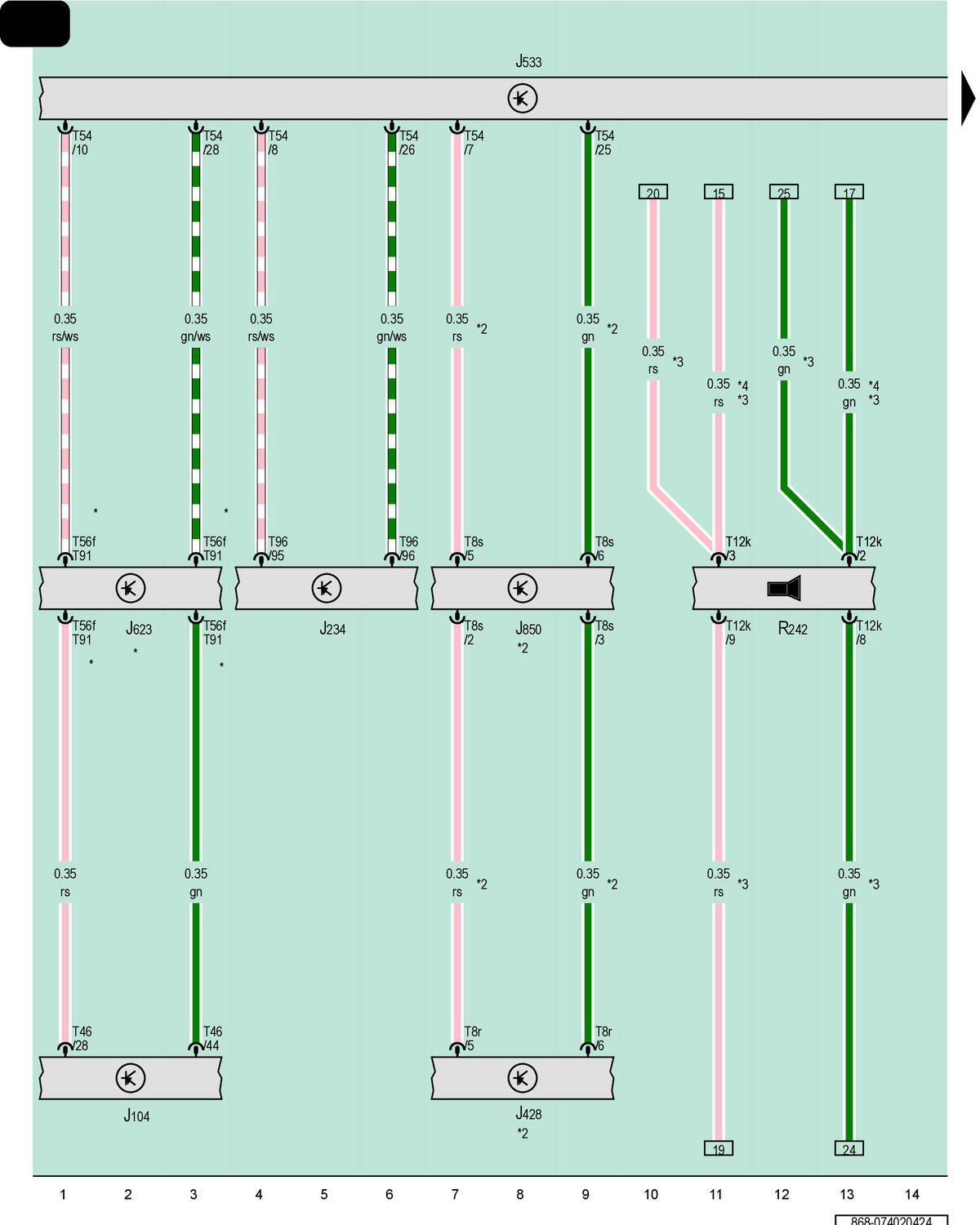

Abs Control Module, Airbag Control Module, Control Module For Adaptive Cruise Control, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Control Module 2 For Adaptive Cruise Control, Driver Assistance Systems Front Camera

Courtesy of AUDI OF AMERICA, LLC

J104

ABS Control Module

J234

Airbag Control Module

J428

Control Module for Adaptive Cruise Control

J533

Data Bus on Board Diagnostic Interface

J623

Engine/Motor Control Module

J850

Control Module 2 for Adaptive Cruise Control

R242

Driver Assistance Systems Front Camera

T8r

8-Pin Connector, Black

T8s

8-Pin Connector, Black

T12k

12-Pin Connector, Black

T46

46-Pin Connector, Black

T54

54-Pin Connector, Black

T56f

56-Pin Connector, Black

T96

96-Pin Connector, Yellow

*

Refer to Applicable Engine Wiring Diagram

*2

For Vehicles with Adaptive Cruise Control (ACC)

*3

For Driver Assistance System

*4

For Vehicles with Electronic Damping
