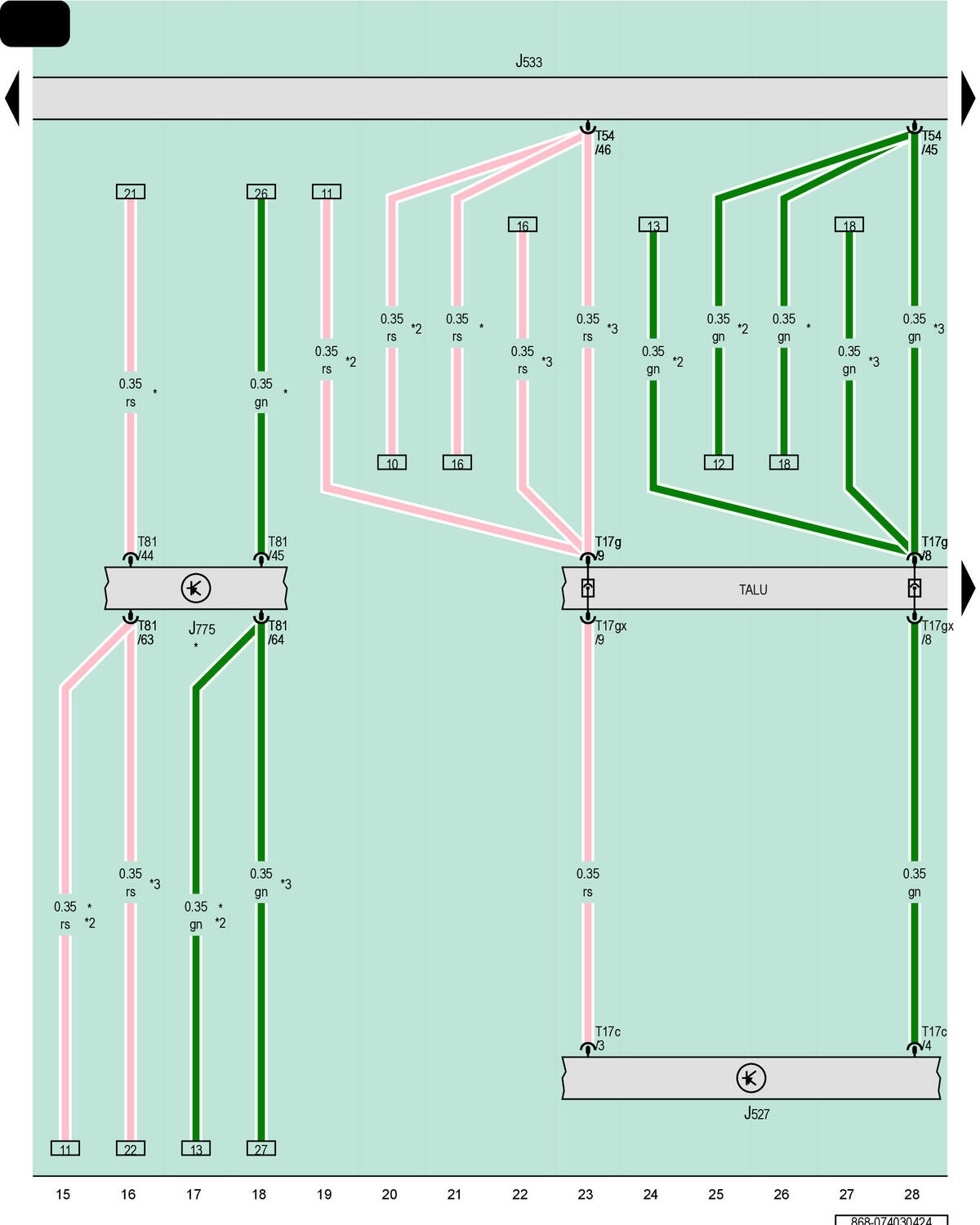

Differential Lock Control Module, Data Bus On Board Diagnostic Interface, Active Steering Control Module
J187
Differential Lock Control Module
J533
Data Bus on Board Diagnostic Interface
J792
Active Steering Control Module
T6aq
6-Pin Connector, Green
T6aqx
6-Pin Connector, Green
T30
30-Pin Connector, Black
T47a
47-Pin Connector, Black
T54
54-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
*
For Vehicles with Rear Final Drive - Sport Differential
*2
For Vehicles with Active Steering
