Control Modules In Front Part Of Vehicle, Overview

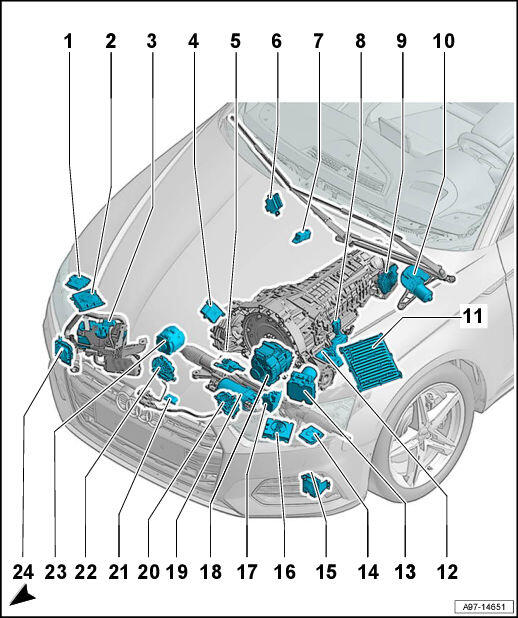

Fig 1: Identifying Control Modules In Front Part Of Vehicle

GWWA97-14651

Courtesy of AUDI OF AMERICA, LLC

1 - Right light control module -J1023-
- CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2-, THROUGH JUNE 2019
2 - Right LED Headlamp Power Output Stage 1 -A27-
- CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2-, THROUGH JUNE 2019
- CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2- (8EX, 8IT, 8IY), FROM JULY 2019
3 - Auxiliary Heater Control Module -J364-
- Auxiliary Heater Control Module -J364- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Auxiliary Heater Control Module -J364-
4 - Automatic Glow Time Control Module -J179-
- Automatic Glow Time Control Module -J179-, FOR VEHICLES WITH ENGINE CODE DEWA, DEWB
- Pin Arrangements Pin Arrangements Automatic Glow Time Control Module -J179-, FOR VEHICLES WITH ENGINE CODE DEWA, DEWB
5 - NOx sensor control module -J583- / -GX30-
- NOx sensor control module -J583- / -GX30- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements NOx sensor control module -J583- / -GX30-
6 - Structure-Borne Sound Control Module -J869-
- Structure-Borne Sound Control Module -J869- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Structure-Borne Sound Control Module -J869-
7 - Automatic Glow Time Control Module -J179-
- Automatic Glow Time Control Module -J179-, FOR VEHICLES WITH ENGINE CODE CZHA, DESA, DETA, DETB, DEUA, DEUB, DEUC, DFVA, CRTC, CSWB, DCPC, DCPE
- Pin Arrangements Pin Arrangements Automatic Glow Time Control Module -J179-
- Component Location and Pin Arrangements for 3.0L Diesel Engine, Engine code DEWA, DEWB -4- Automatic Glow Time Control Module -J179-
- Component Location and Pin Arrangements for 3.0L Diesel Engine, Engine code DMKC, DMGA -21- Automatic Glow Time Control Module -J179-
8 - Direct Shift Gearbox (DSG) Mechatronic -J743-
- Direct Shift Gearbox (DSG) Mechatronic -J743- (7-SPEED DIRECT SHIFT GEARBOX)
- Pin Arrangements Pin Arrangements Direct Shift Gearbox (DSG) Mechatronic -J743-
9 - All-Wheel Drive Control Module -J492-
- All-Wheel Drive Control Module -J492- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements All-Wheel Drive Control Module -J492-
10 - Wiper Motor Control Module -J400-
- Wiper Motor Control Module -J400- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements, left-hand drive vehicles Pin arrangements, left-hand drive, Wiper Motor Control Module -J400-
11 - Engine Control Module (ECM) -J623-
- Engine Control Module (ECM) -J623-, 196-PIN
- Engine Control Module (ECM) -J623-, 280-PIN
- Engine Control Module (ECM) -J623-, 315-PIN
- Engine Control Module (ECM) -J623-, 336-PIN
12 - Transmission Control Module (TCM) -J217-
- Transmission Control Module (TCM) -J217-
- Pin Arrangements Pin Arrangements Transmission Control Module (TCM) -J217-
13 - ABS Control Module -J104-
- ABS Control Module -J104- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements ABS Control Module -J104-
14 - Left light control module -J1018-
- CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2-, THROUGH JUNE 2019
15 - Distance Regulation Control Module 2 -J850-
- Distance Regulation Control Module 2 -J850- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Distance Regulation Control Module 2 -J850-
16 - Left LED Headlamp Power Output Stage 1 -A31-
- CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2-, THROUGH JUNE 2019
- CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2- (8EX, 8IT, 8IY), FROM JULY 2019
17 - Control unit for electric compressor -J1123-
- For vehicles with 48 V hybrid system
- Control unit for electric compressor -J1123- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Control unit for electric compressor -J1123-
18 - Starter generator -C29-
- for vehicles with 12 V hybrid system
- for vehicles with 48 V hybrid system -23- Starter generator -C29-
- Starter generator -C29- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Starter generator -C29-
19 - Power Steering Control Module -J500-
- Power Steering Control Module -J500- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Power Steering Control Module -J500-
20 - Radiator Fan Control Module 2 -J671-
- Radiator Fan Control Module -J293- / Radiator Fan Control Module 2 -J671-, WITH 800 WATT OR 1200 WATT
- Pin Arrangements with Radiator Fan 800 watt or 1200 watt Pin Arrangements Radiator Fan Control Module -J293- / -J671-, with 800 watt or 1200 watt
21 - Automatic Glow Time Control Module -J179-
- Automatic Glow Time Control Module -J179-, FOR VEHICLES WITH ENGINE CODES DMKC, DMGA
- Pin Arrangements Pin Arrangements Automatic Glow Time Control Module -J179-, FOR VEHICLES WITH ENGINE CODES DMKC, DMGA
22 - Radiator Fan Control Module -J293-
- Radiator Fan Control Module -J293-, WITH 400 WATT OR 600 WATT
- Radiator Fan Control Module -J293- / Radiator Fan Control Module 2 -J671-, WITH 800 WATT OR 1200 WATT
- Pin Arrangements with Radiator Fan 400 watt or 600 watt Pin Arrangements Radiator Fan Control Module -J293-, with 400 watt or 600 watt
- Pin Arrangements with Radiator Fan 800 watt or 1200 watt Pin Arrangements Radiator Fan Control Module -J293- / -J671-, with 800 watt or 1200 watt
23 - Starter generator -C29-
- For vehicles with 48 V hybrid system
- Starter generator -C29-, FOR VEHICLES WITH 48 V HYBRID SYSTEM
- Pin Arrangements Pin Arrangements Starter generator -C29-
24 - Distance Regulation Control Module -J428-
- Distance Regulation Control Module -J428- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Distance Regulation Control Module -J428-
