Fuel Tank Lead Detection Control Module -J909- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

On fuel tank.

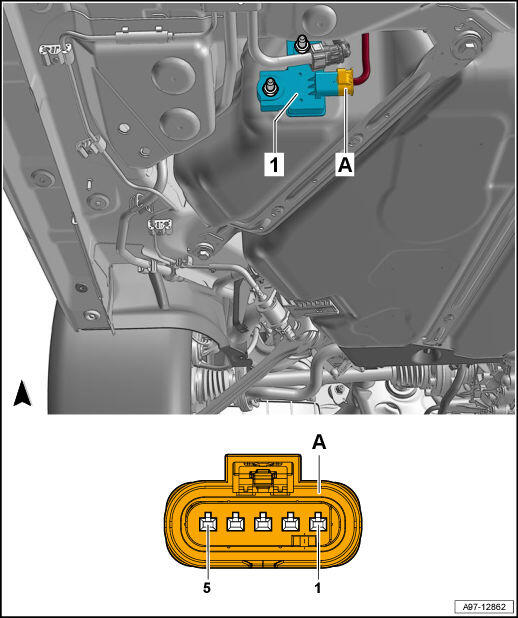

Fig 1: Fuel Tank Lead Detection Control Module -J909- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Fuel Tank Lead Detection Control Module -J909-
• A -  5-Pin Connector -T5sm-, black
