Engine Front

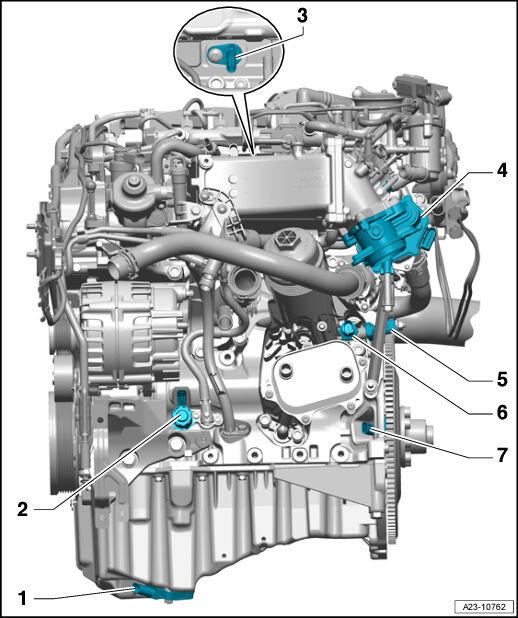

Fig 1: Identifying Front Engine Components (DFVA)

GWWA23-10762

Courtesy of AUDI OF AMERICA, LLC

1 - Oil level thermal sensor -G266-
2 - Oil pressure regulation valve -N428-
3 - Camshaft position sensor -G40-
5 - Throttle valve control module -GX3-
5 - Throttle Valve Control Module -J338-
5 - EPC Throttle Drive -G186-
5 - EPC Throttle Drive Angle Sensor 1 -G187-
5 - EPC Throttle Drive Angle Sensor 2 -G188-
6 - Oil pressure switch -F22-
7 - Engine speed sensor -G28-
