Engine Rear

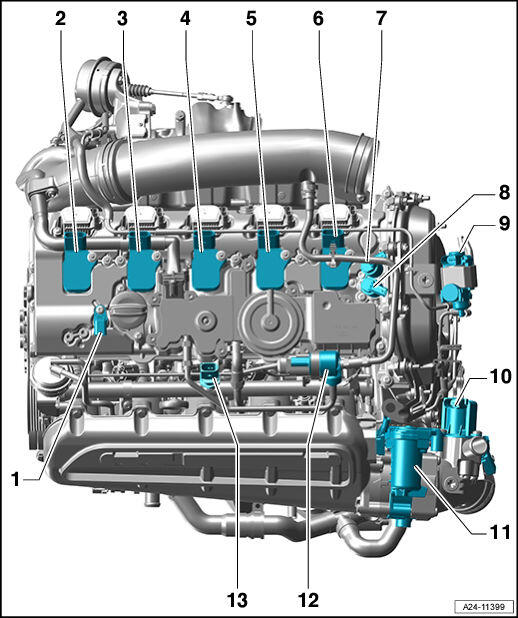

Fig 1: Identifying Rear Engine Components (DFVA)

GWWA24-11399

Courtesy of AUDI OF AMERICA, LLC

1 - Exhaust gas temperature sensor 4 G648
2 - EGR motor 2 -V339-
3 - NOx sensor G295
5 - Reducing agent injector -N474-
6 - Exhaust gas temperature sensor 3 G495
7 - Exhaust gas temperature sensor 2 G448
8 - Exhaust gas temperature sensor 1 G235
9 - Heater support pump -V488-
