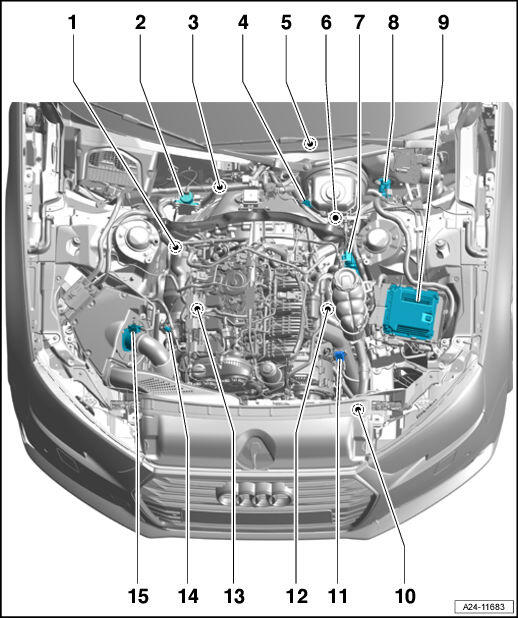

Engine Compartment
Courtesy of AUDI OF AMERICA, LLC
- 2 -
Coolant Shut-Off Valve -N82-
- 2 -
Heater Coolant Shut-Off Valve -N279-, with parking heater
- 3 -
Gear Recognition Sensor -G604-
- 4 -
Brake Booster Pressure Sensor -G294-
- 5 -
Accelerator pedal module -GX2-
- 5 -
Accelerator Pedal Position Sensor -G79-
- 5 -
Accelerator Pedal Position Sensor 2 -G185-
- 6 -
Brake Lamp Switch -F-
- 7 -
Coolant Recirculation Pump -V50-
- 7 -
After-Run Coolant Pump -V51-
- 8 -
Clutch Position Sensor -G476-
- Equipment version with manual transmission
- 8 -
Clutch Pedal Switch -F36-
- Equipment version with manual transmission
- 8 -
Clutch Pedal Starter Interlock Switch -F194-
- Equipment version with manual transmission
- 10 -
Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- 11 -
Charge Air Pressure Sensor -G31-
- 12 -
Right Electrohydraulic Engine Mount Solenoid Valve -N145-
- 13 -
Left Electrohydraulic Engine Mount Solenoid Valve -N144-
