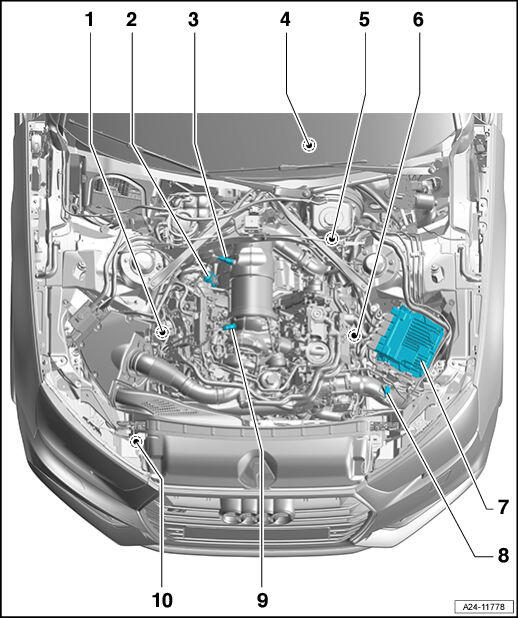

Engine Compartment
Courtesy of AUDI OF AMERICA, LLC
- 1 -
Right electrohydraulic engine mount solenoid valve -N145-
- 2 -
Coolant recirculation pump -V50-
- 3 -
Oxygen sensor after catalytic converter G130
- 4 -
Accelerator pedal module -GX2-
- 4 -
Accelerator pedal position sensor -G79-
- 4 -
Accelerator pedal position sensor 2 -G185-
- 5 -
Brake lamp switch -F-
- 6 -
Left electrohydraulic engine mount solenoid valve -N144-
- 7 -
Engine control module J623
- 8 -
Charge air pressure sensor -G31-
- 9 -
Heated oxygen sensor G39
- 10 -
Engine coolant temperature sensor on radiator outlet -G83-
