Component Paint Repair

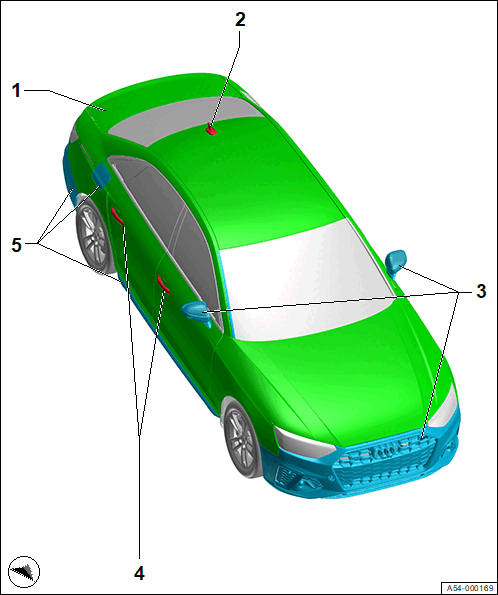

A4 8W

Courtesy of AUDI OF AMERICA, LLC

1. 1 -

   Components made of galvanized sheet steel

   • Refer to appropriate service information .
2. 2 -

   Roof Antenna

   • Never loosen from the dust seal, there is a risk of malfunction
3. 3 and 5 -

   Plastic Components

   • Refer to appropriate service information .
4. 4 -

   Door Handle with Keyless Function

   • Check the VIN if the vehicle is equipped with a keyless function.
   • Maximum layer thickness 200 μ
   • Filler paste not allowed

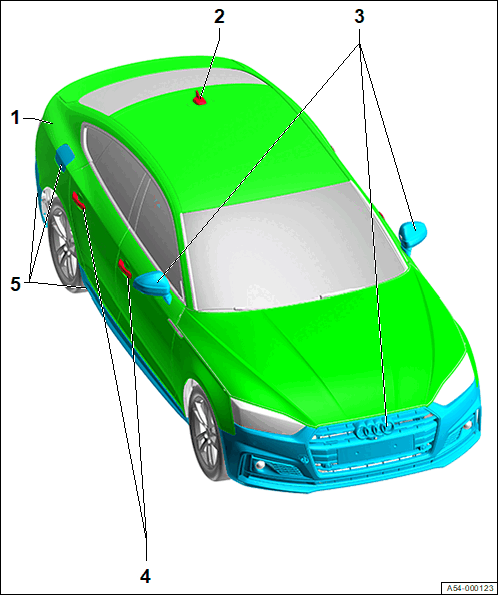

A5 F5

Courtesy of AUDI OF AMERICA, LLC

1. 1 -

   Components made of galvanized sheet steel

   • Refer to appropriate service information .
2. 2 -

   Roof Antenna

   • Never loosen from the dust seal, there is a risk of malfunction
3. 3 and 5 -

   Plastic Components

   • Refer to appropriate service information .
4. 4 -

   Door Handle with Keyless Function

   • Check the VIN if the vehicle is equipped with a keyless function.
   • Maximum layer thickness 200 μ
   • Filler paste not allowed
