Comp. LOC. Abs: Overview

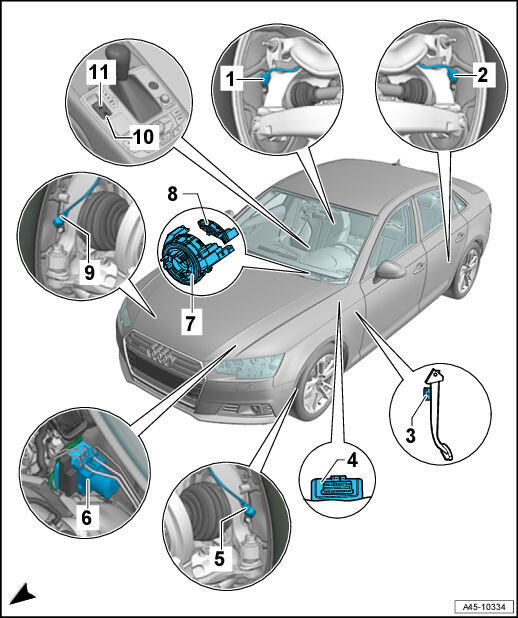

Fig 1: Identifying ABS Components

GWWA45-10334

Courtesy of AUDI OF AMERICA, LLC

1 - Right Rear ABS Wheel Speed Sensor -G44-
2 - Left Rear ABS Wheel Speed Sensor -G46-
6 - ABS hydraulic unit -N55-
8 - Steering angle sensor -G85-
- Installed under the steering wheel
9 - Right front ABS wheel speed sensor -G45-
10 - Switch module in instrument panel, center -EX22-
10 - ASR/ESP button -E256-
10 - Hill descent control button -E618-
11 - Electromechanical parking brake button -E538-
11 - -AUTO HOLD- button -E540-
