Airbag Control Module -J234- COMPONENT LOCATION AND CONNECTOR END VIEW

Component Location

Below center console.

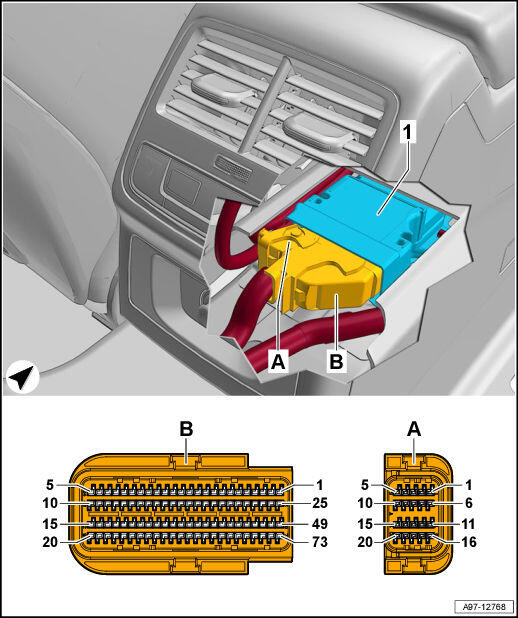

Fig 1: Airbag Control Module -J234- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Airbag Control Module -J234-
• A -  20-Pin Connector -T20-, yellow
• B -  96-Pin Connector -T96-, yellow
