Engine Front

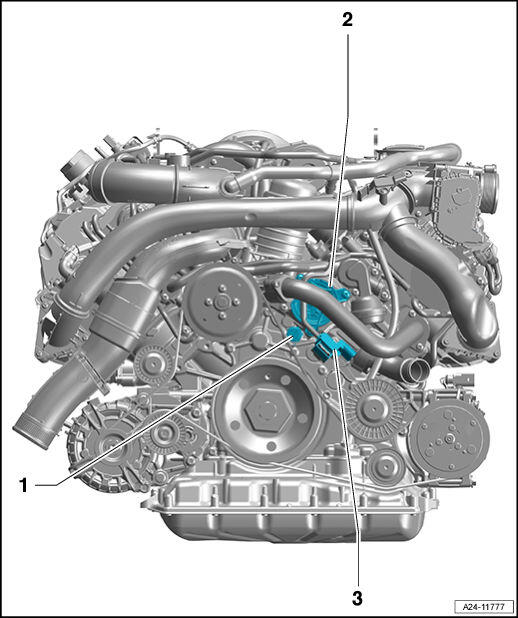

Fig 1: Identifying Front Engine Components (CWGD)

GWWA24-11777

Courtesy of AUDI OF AMERICA, LLC

1 - Oil pressure sensor -G10-
2 - Map controlled engine cooling thermostat -F265-
3 - Cylinder head coolant valve -N489-
