Auxiliary Heater RF Receiver -R64- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

In right luggage compartment, behind side panel trim.

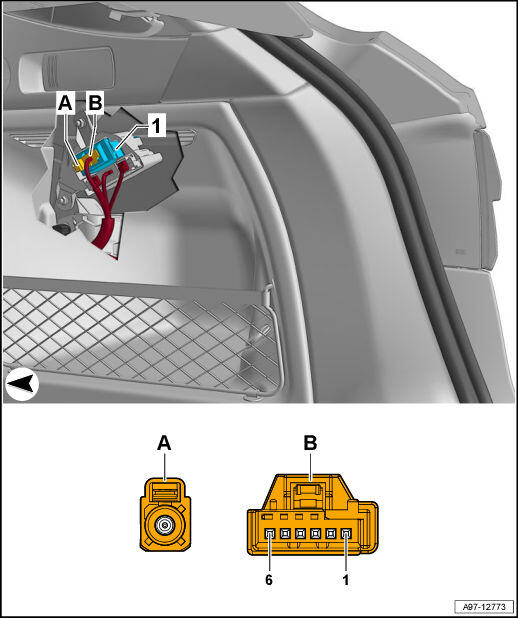

Fig 1: Auxiliary Heater RF Receiver -R64- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Auxiliary Heater RF Receiver -R64-
• A -  2-Pin Connector -T2dc-, naturally cloudy
  • from the Auxiliary Heater Antenna -R182- In the Roof Antenna -R216-
• B -  6-Pin Connector -T6y-, blue
