Tire Pressure Monitoring Control Module -J502- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

On the underbody, rear.

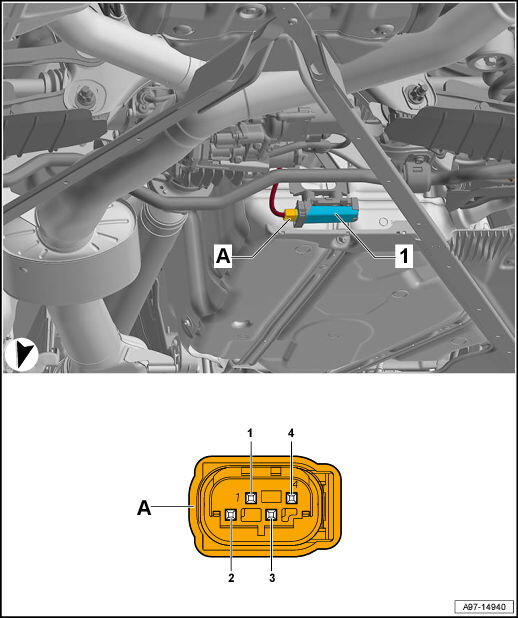

Fig 1: Tire Pressure Monitoring Control Module -J502- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Tire Pressure Monitoring Control Module -J502-
• A -  4-Pin Connector -T4rd-, gray
