Roof Electronics Control Module -J528-, CABRIOLET: Notes

Component Location

in Front roof module -WX3-.

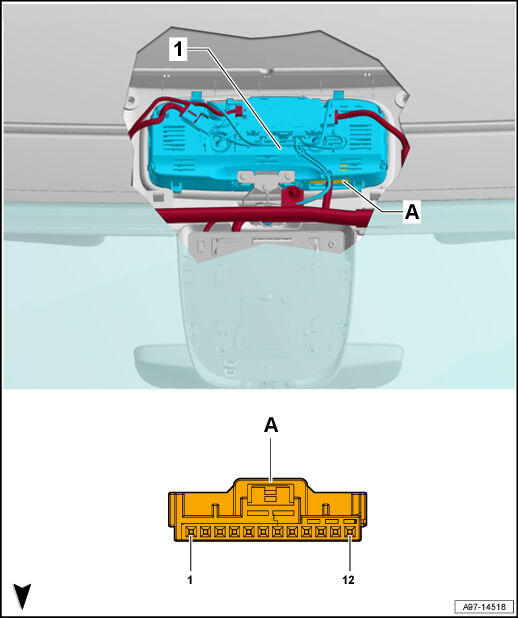

Fig 1: Roof Electronics Control Module -J528-, Cabriolet Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. Roof Electronics Control Module -J528-

1. 12-Pin Connector -T12e-, black
