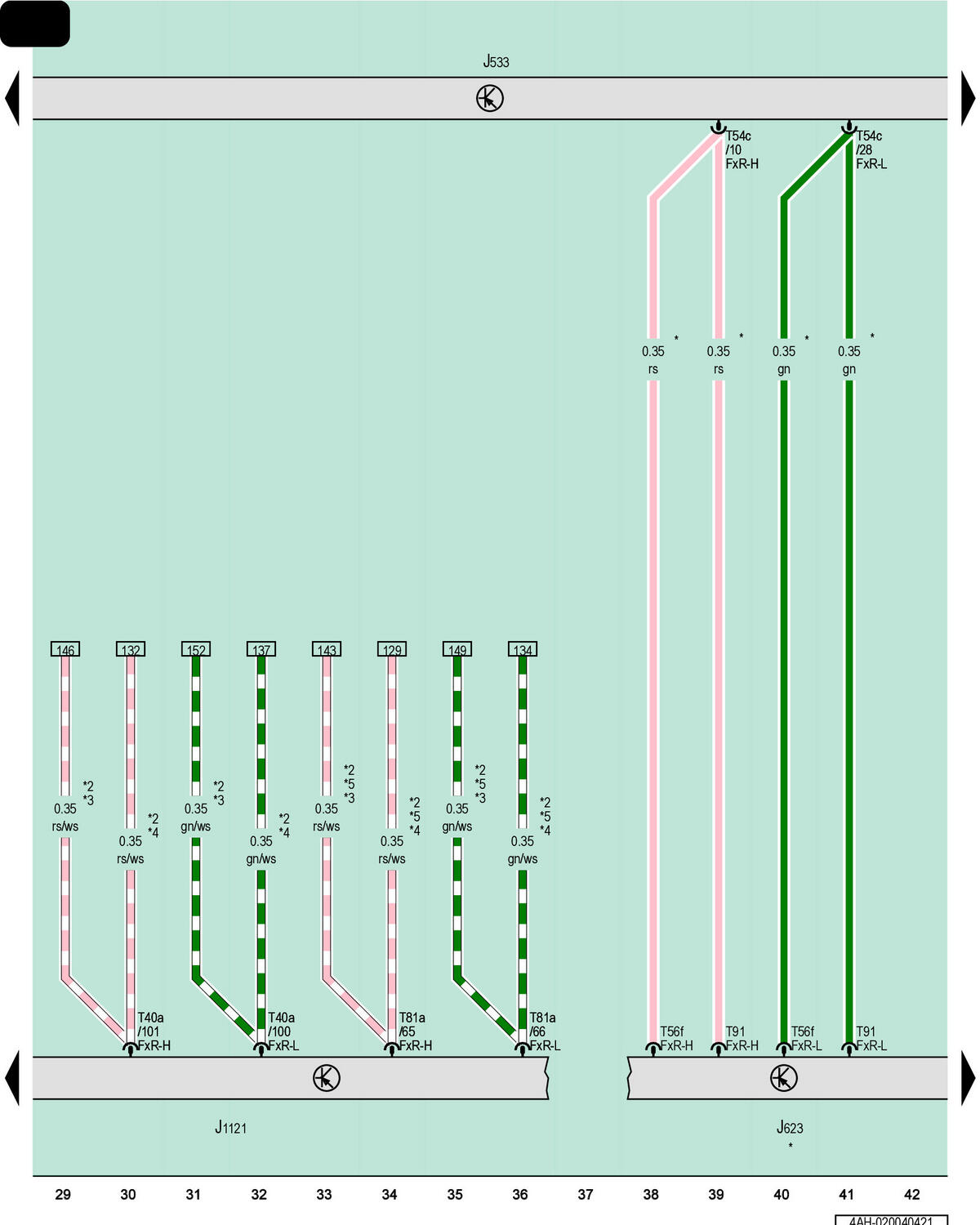

Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Driver Assistance Systems Control Module
J533
Data Bus on Board Diagnostic Interface
J623
Engine/Motor Control Module
J1121
Driver Assistance Systems Control Module
T40a
40-Pin Connector, Black
T54c
54-Pin Connector, Black
T56f
56-Pin Connector, Black
T81a
81-Pin Connector, Black
T91
91-Pin Connector, Black
*
Refer to Applicable Engine Wiring Diagram
*2
For Driver Assistance System
*3
For Vehicles with Electromechanical Power Steering
*4
For Vehicles with Active Steering
*5
Optional Equipment
