Part II

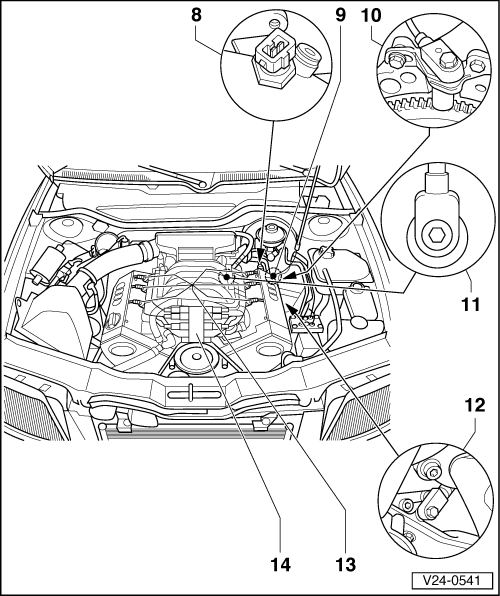

Fig 1: Identifying Engine Components (2.8L, AFC/AAH) (2 Of 3)

GWWV24-0541

Courtesy of AUDI OF AMERICA, LLC

8 - Engine coolant temperature sensor -G62-
9 - Heated oxygen sensor 2 -G108-
10 - Engine speed sensor -G28-
11 - Knock sensor 2 -G66-
12 - Crankshaft position sensor -G4-
13 - Fuel Injectors
14 - Ignition Coils
