Rearview Camera

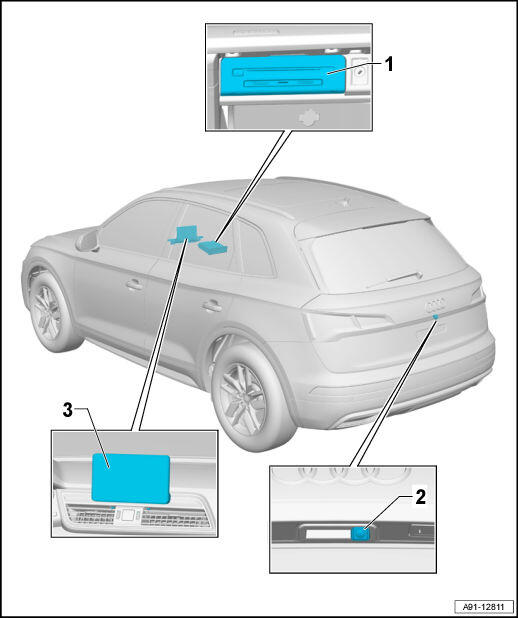

Fig 1: Identifying Rearview Camera Components
GWWA91-12811Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Information electronics control module 1 J794
  2. 2 -  Rearview camera -R189-
  3. 2 -  Rearview camera system control module J772
  4. 3 -  Front information display control head J685
