Distance Regulation Control Module -J428- Component Location And Connector End View: Notes

Component Location

Behind bumper, right front.

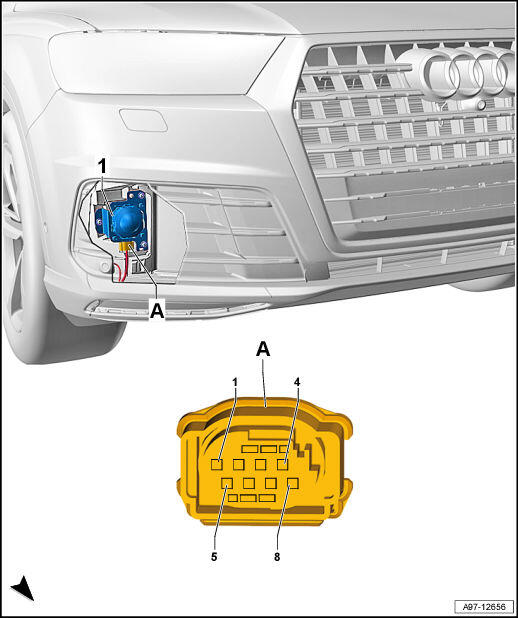

Fig 1: Distance Regulation Control Module -J428- Component Location And Connector End View
GWWA97-12656Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Distance Regulation Control Module -J428-
  2. A -  8-Pin Connector -T8r-, black
