Structure-Borne Sound Control Module -J869- Component Location And Connector End View

NOTE:

Illustration below shows location for left-hand drive vehicles. In right-hand drive vehicles, installation is mirror-inverted.

Component Location

In plenum chamber.

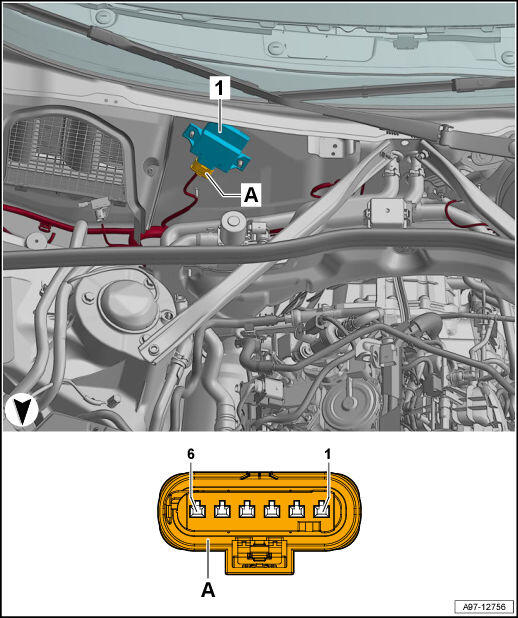

Fig 1: Structure-Borne Sound Control Module -J869- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC
