Android Operating System Control Module -J1243- Component Location And Connector End View

Component Location

In glove compartment

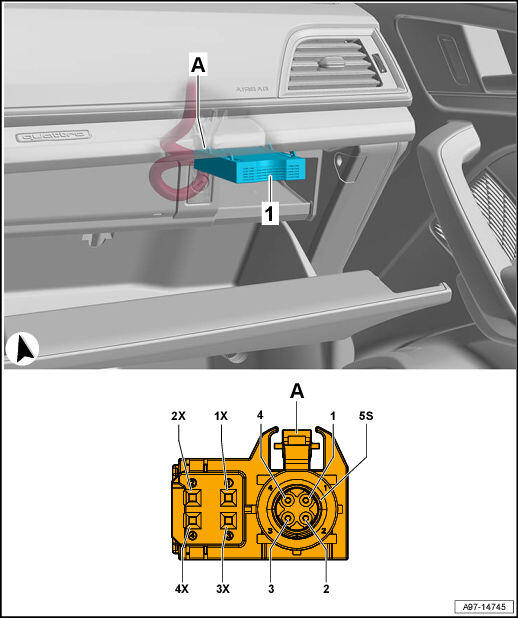

Fig 1: Android Operating System Control Module -J1243- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Android Operating System Control Module -J1243-
2. A -  9-Pin Connector -T9r-, blue
