Automatic High Beam Assist Control Module -J844- Component Location And Connector End View: Notes

Component Location

On interior mirror.

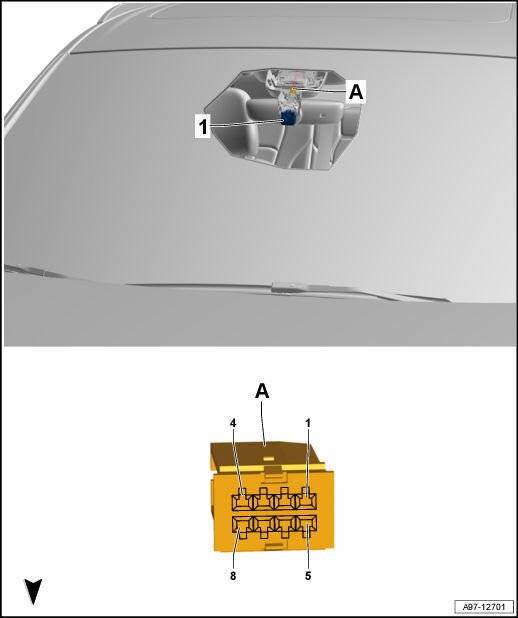

Fig 1: Automatic High Beam Assist Control Module -J844- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Automatic High Beam Assist Control Module -J844-
2. A -  8-Pin Connector -T8o-, black
