Driver's Door Control Module -J386- Component Location And Connector End View: Notes

Component Location

In driver's door.

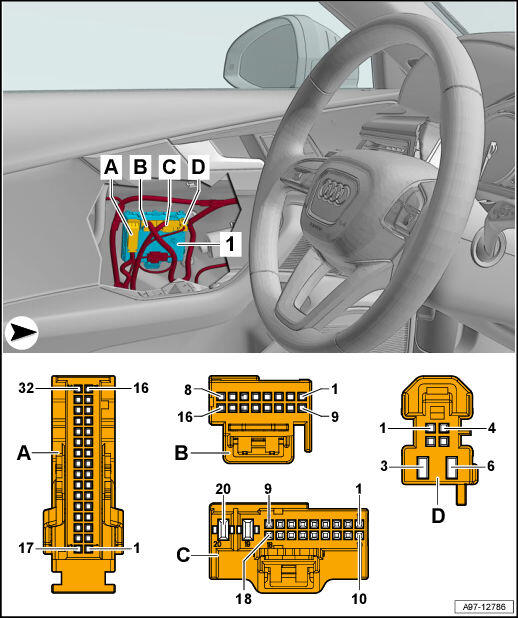

Fig 1: Driver's Door Control Module -J386- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Driver's Door Control Module -J386-
2. A -  32-Pin Connector -T32a-, blue
3. B -  16-Pin Connector -T16b-, white
4. C -  20-Pin Connector -T20l-, white
5. D -  6-Pin Connector -T6l-, black
