Front MULTICONTOUR Seat Control Module Driver's Side -J873- / Front MULTICONTOUR Seat Control Module Front Passenger's Side -J872- Component Location And Connector End View

Component Location

In the seat backrest.

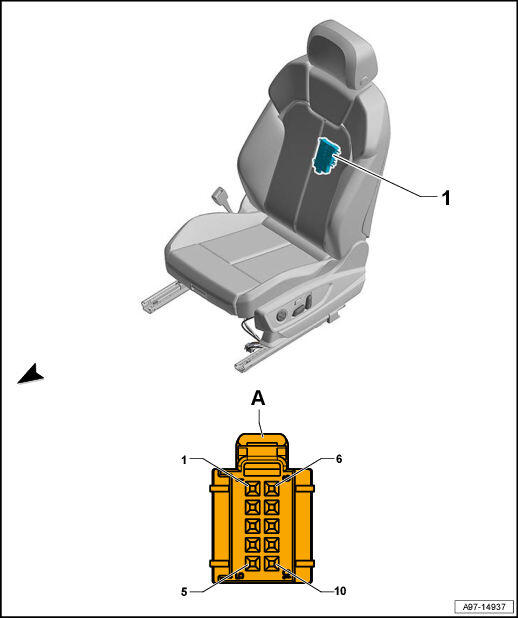

Fig 1: Front Multicontour Seat Control Module Driver's Side -J873- / Front Multicontour Seat Control Module Front Passenger's Side -J872- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Front Multicontour Seat Control Module Driver's Side -J873- / Front Multicontour Seat Control Module Front Passenger's Side -J872-
2. A -  10-Pin Connector -- :T10af  / :T10ag  , black
