Roof Electronics Control Module -J528- Component Location And Connector End View: Notes

Component Location

in Front roof module -WX3-.

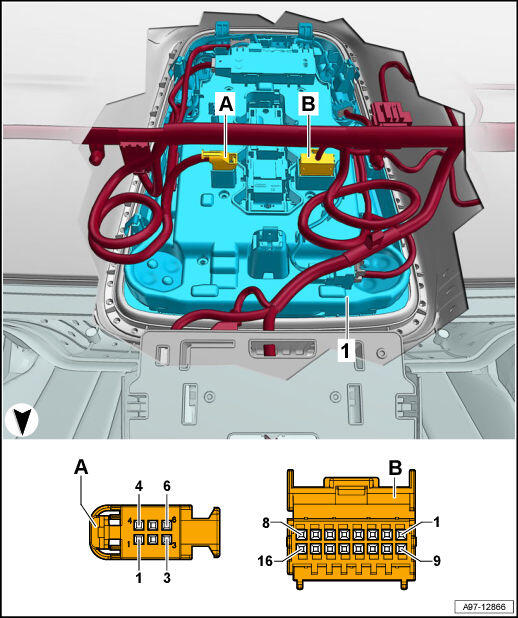

Fig 1: Roof Electronics Control Module -J528- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Roof Electronics Control Module -J528-
2. A -  6-Pin Connector -T6bc-, black
3. B -  16-Pin Connector -T16p-, brown
