TV Tuner -R78- Component Location And Connector End View: Notes

Component Location

In right luggage compartment, behind side panel trim.

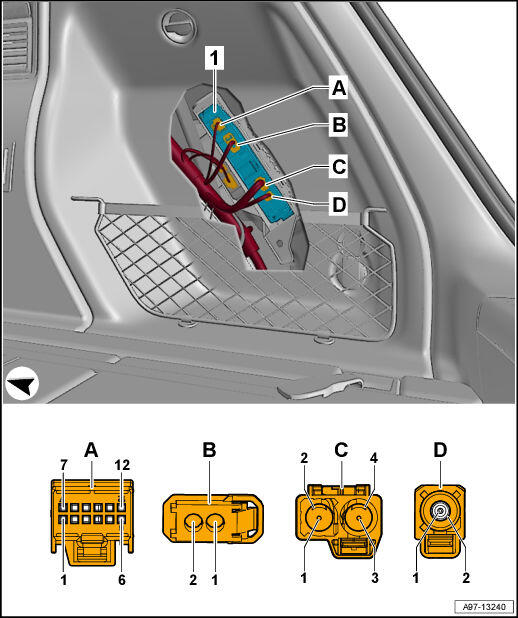

Fig 1: TV Tuner -R78- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  TV Tuner -R78-
2. A -  12-Pin Connector -T12d-, black
3. B -  2-Pin Connector -T2ea-, black
   • MOST Bus
4. C -  4-Pin Connector -T4tv-, green
5. D -  2-Pin Connector -T2tv-, brown
