Engine Right

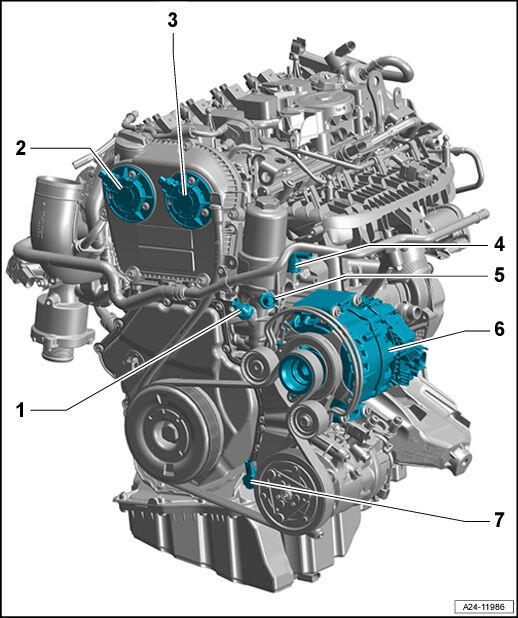

Fig 1: Identifying Right Side Of Engine Components (2.0L TFSI DAYB, DJYA, DLGA)

GWWA24-11986

Courtesy of AUDI OF AMERICA, LLC

1 - Oil Pressure Switch -F22-
2 - Exhaust Camshaft Adjustment Valve 1 -N318-
3 - Camshaft Adjustment Valve 1 -N205-
4 - Piston Cooling Nozzle Control Valve -N522-
5 - Reduced Oil Pressure Switch -F378-
6 - Starter Generator -C29-
7 - Oil Pressure Regulation Valve -N428-
