Engine Rear

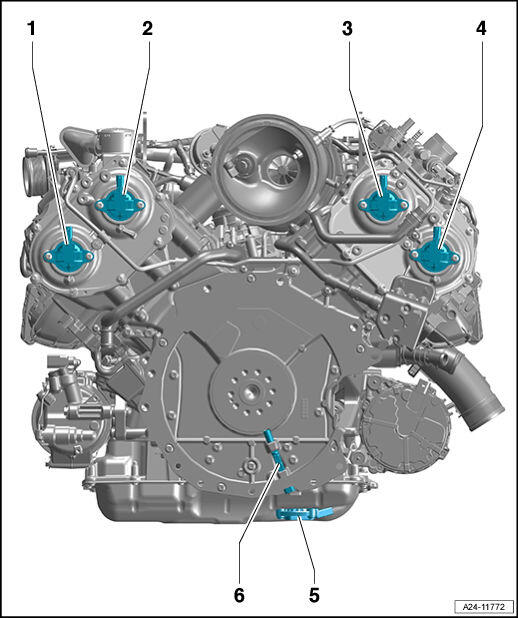

Fig 1: Identifying Rear Engine Components (3.0L TFSI CWGD)
GWWA24-11772Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Camshaft adjustment valve 2 -N208-
  2. 2 -  Exhaust camshaft adjustment valve 2 -N319-
  3. 3 -  Exhaust camshaft adjustment valve 1 -N318-
  4. 4 -  Camshaft adjustment valve 1 -N205-
  5. 5 -  Oil level thermal sensor -G266-
  6. 6 -  Engine speed sensor -G28-
