2.0L TFSI, DPVA

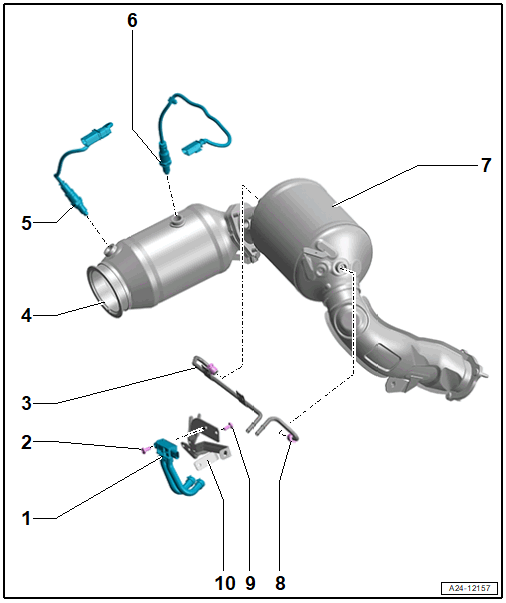

Fig 1: Identifying Exhaust Components (2.0L TFSI, DPVA)
GWWA24-12157Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Particulate Filter Differential Pressure Sensor -G1037-
  2. 5 -  Oxygen Sensor 1 Before Catalytic Converter -GX10-
    • Heated Oxygen Sensor -G39-
  3. 6 -  Oxygen Sensor 1 After Catalytic Converter -GX7-
    • Oxygen Sensor After Catalytic Converter -G130-
