Central Locking

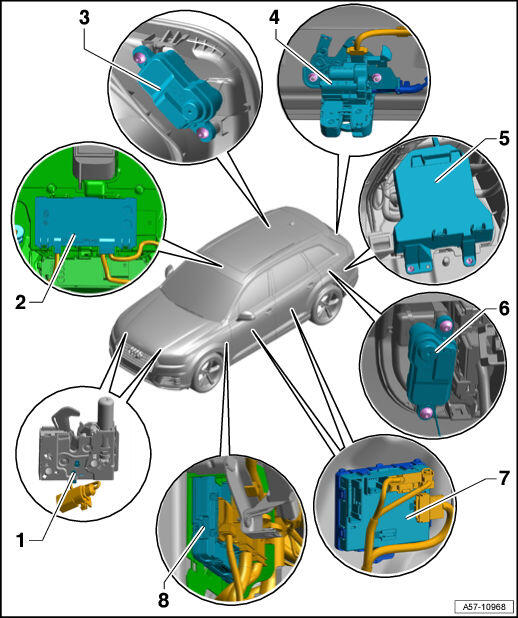

Fig 1: Identifying Central Locking Components
GWWA57-10968Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Engine hood contact switch -F266-
  2. 1 -  Hood contact switch 2 -F329-
  3. 2 -  Anti-theft alarm system sensor -G578-
  4. 3 -  Fuel filler door lock motor -V155-
  5. 4 -  Rear lid central locking system motor -V53-
  6. 4 -  Rear lid alarm switch -F123-
  7. 5 -  Comfort system central control module J393
  8. 6 -  High-voltage charge door lock 1 adjuster -F496-, if equipped
  9. 7 -  Driver door control module J386
  10. 7 -  Front passenger door control module J387
  11. 7 -  Driver side rear door control module J926
  12. 7 -  Passenger side rear door control module J927
  13. 8 -  Vehicle electrical system control module J519
