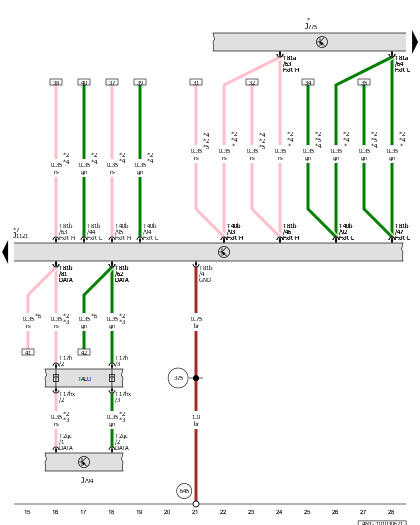

Drivetrain Control Module, Information Electronics Control Module 1, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

J775

Drivetrain Control Module

J794

Information Electronics Control Module 1

J1121

Driver Assistance Systems Control Module

T2qc

2-Pin Connector, Black

T17h

17-Pin Connector, Blue

T17hx

17-Pin Connector, Blue

T40b

40-Pin Connector, Black

T81a

81-Pin Connector, Black

T81b

81-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

375

Ground Connection 10 (in Main Wiring Harness)

645

Ground Connection 1 on Bulkhead

*

For Vehicles with Level Control System

*2

Depending on Equipment

*3

Through June 2020

*4

For Driver Assistance System

*5

For Vehicles Without Level Control System

*6

From June 2020

*7

Refer to Applicable Wiring Diagram for Data Bus Networking
