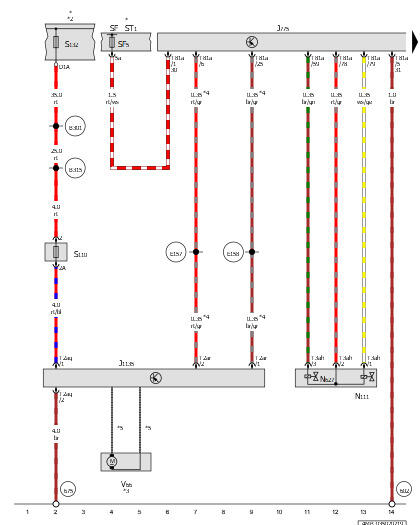

Drivetrain Control Module, Level Control System Compressor Electronics, Level Control System Solenoid, Level Control System Compressor Motor

Courtesy of AUDI OF AMERICA, LLC

J775

Drivetrain Control Module

J1135

Level Control System Compressor Electronics

N111

Level Control System Solenoid

N627

Air Spring Quick Fill Valve

ST1

Fuse Panel 1

SF5

Fuse 5 (On Fuse Panel F)

S110

Self-Leveling Suspension Fuse

S132

Safety Fuse 2

SF

Fuse Panel F

T2aq

2-Pin Connector, Black

T2ar

2-Pin Connector

T3ah

3-Pin Connector

T4i

4-Pin Connector, Black

T81a

81-Pin Connector, Black

V66

Level Control System Compressor Motor

602

Ground Connection in Left Front Footwell

675

Ground Connection 2 in Luggage Compartment on Right Side

B301

Positive Connection 5 (30) (in Main Wiring Harness)

B315

Positive Connection 1 (30a) (in Main Wiring Harness)

E157

Connection 1 (CAN Bus Suspension Control Module, High)

E158

Connection 1 (CAN Bus Suspension Control Module, Low)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

On the Battery

*3

Pre-Wired Component

*4

Data Wire

*5

Adapter Cable
