Full Load Setting

Detach induction (resonator) pipe from No. 1 cylinder. Secure regulating lever in lowest slotted hole in pump housing, using pull hook. Adjust stop screw until pump lever is just contacted.

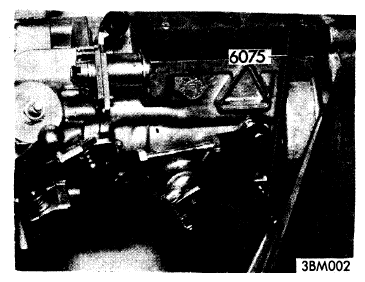

Fig 1: WARM-UP SENSOR ADJUSTMENT (ENGINE WARM)
G09313690Courtesy of NOT AVAILABLE
