Repair and Diagnosis: Transmission: Clutches: Description

Clutch is dry, single plate, diaphragm spring type design. Clutch release system is self-adjusting and hydraulically actuated.

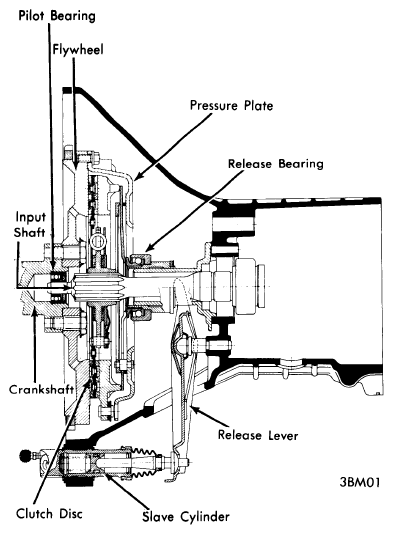

Fig 1: SECTIONAL VIEW OF CLUTCH ASSEMBLY
G09319489Courtesy of BMW OF NORTH AMERICA, INC.
