Wiring Diagrams: Wiring Diagram

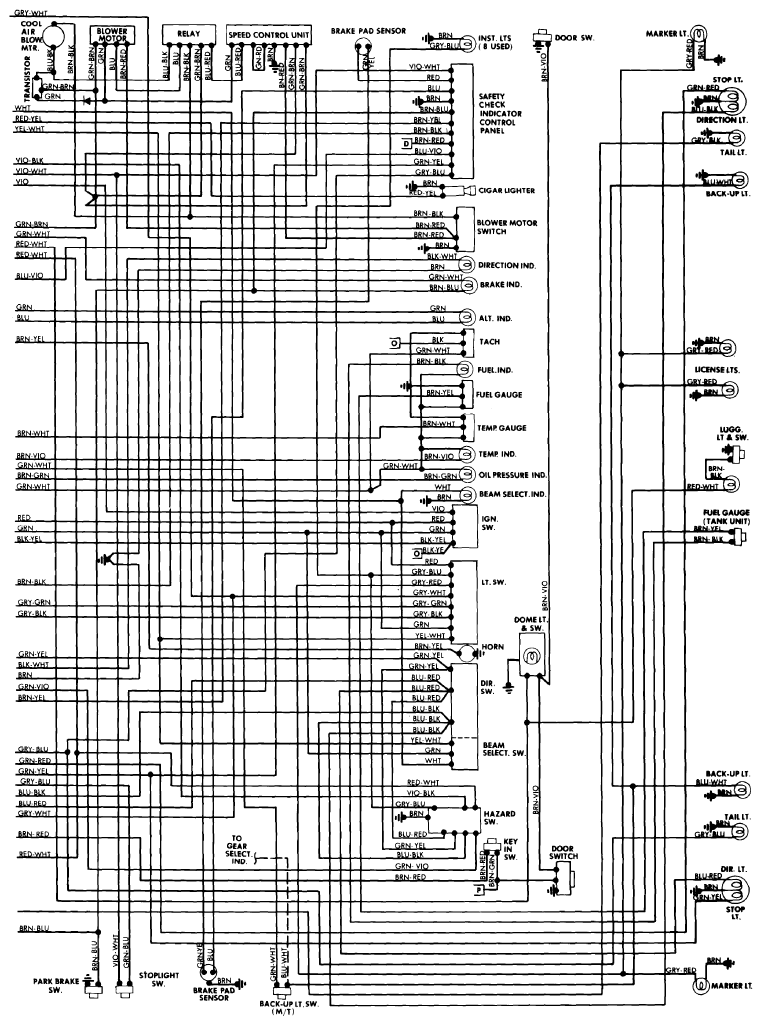

Fig 1: Wiring Diagram - 630CSi & 733i (1 of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Wiring Diagram - 630CSi & 733i (2 of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
