Maintenance Reminder Systems: Wiring Diagram

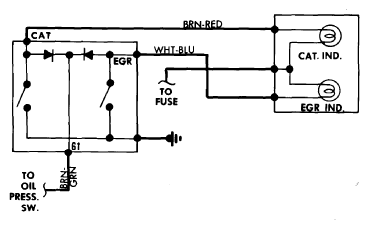

Fig 1: EGR and Converter Reminder System (BMW 320i)

Courtesy of BMW OF NORTH AMERICA, INC.

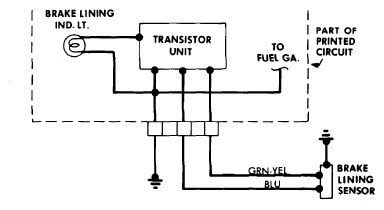

Fig 2: Brake Lining Reminder System (BMW 528i)

Courtesy of BMW OF NORTH AMERICA, INC.
