Air Temperature Sensor

The air temperature sensor is part of air flow meter. It converts the temperature of incoming air into electrical signals. These signals are received by the ECU and used to adjust the amount of fuel injected. The air temperature sensor is a non-serviceable device.

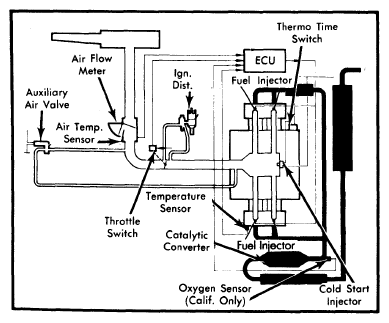

Fig 1: Vanagon AFC Fuel Injection System
G09345250Courtesy of NOT AVAILABLE
