Wiper Switch: Installation

To install, reverse removal procedure.

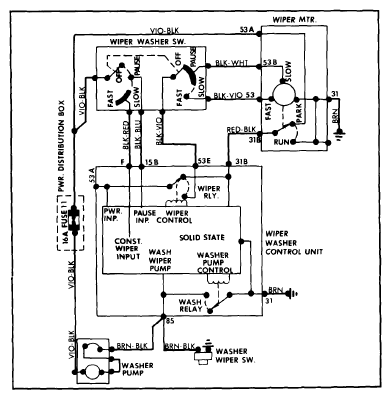

Fig 1: BMW 320i & 633CSi Wiring Diagram

Courtesy of BMW OF NORTH AMERICA, INC.

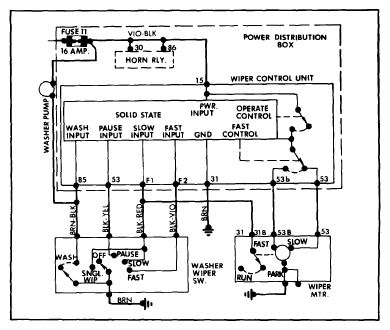

Fig 2: BMW 528e Wiring Diagram

Courtesy of BMW OF NORTH AMERICA, INC.

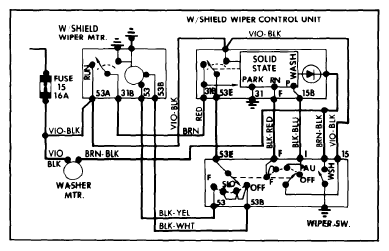

Fig 3: BMW 733i Wiring Diagram

Courtesy of BMW OF NORTH AMERICA, INC.
