Service Indicator & Warning Lights: Notes

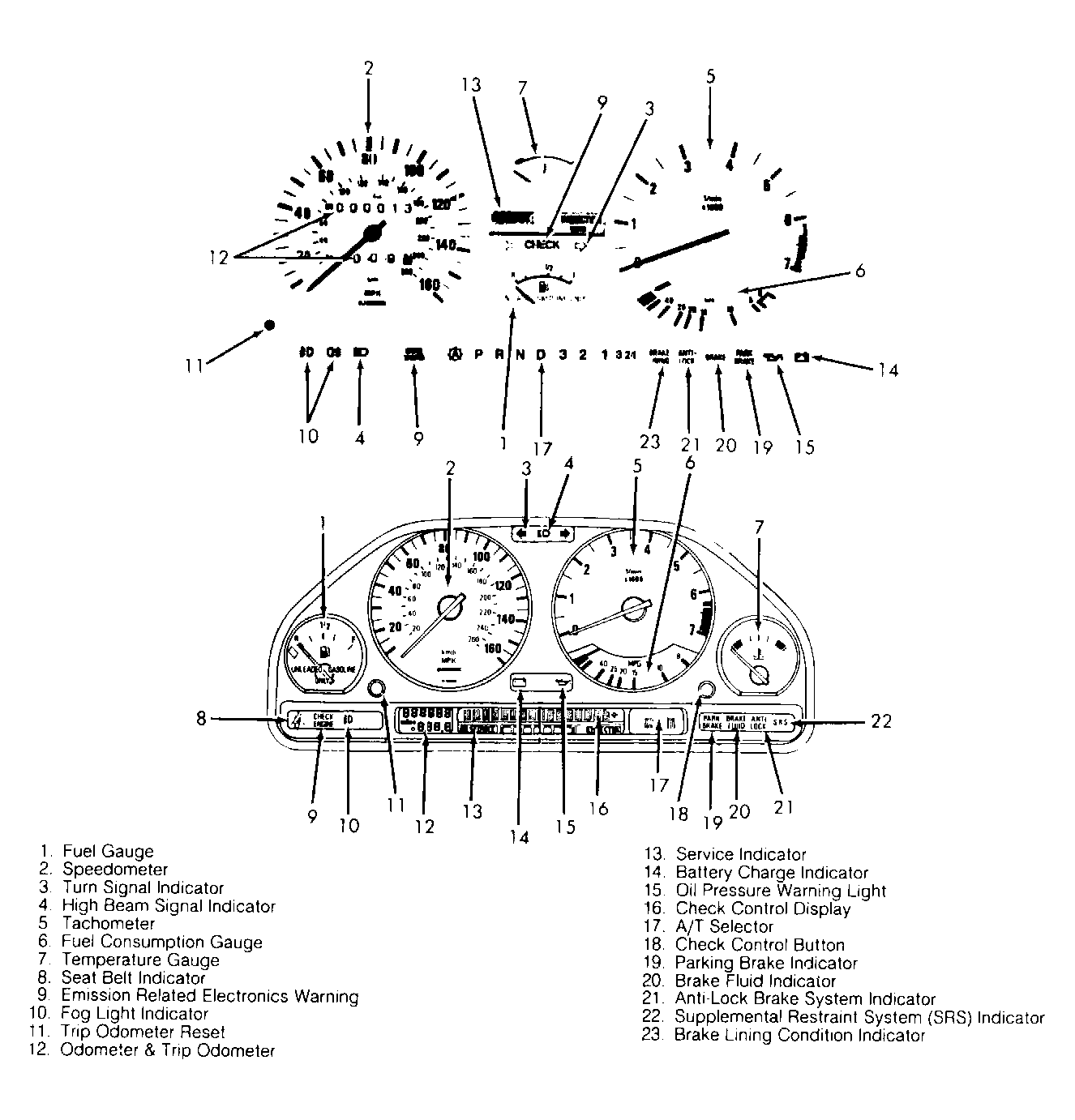

Fig 1: Dash Gauges & Warning Lights
G90F01177Courtesy of BMW OF NORTH AMERICA, INC.

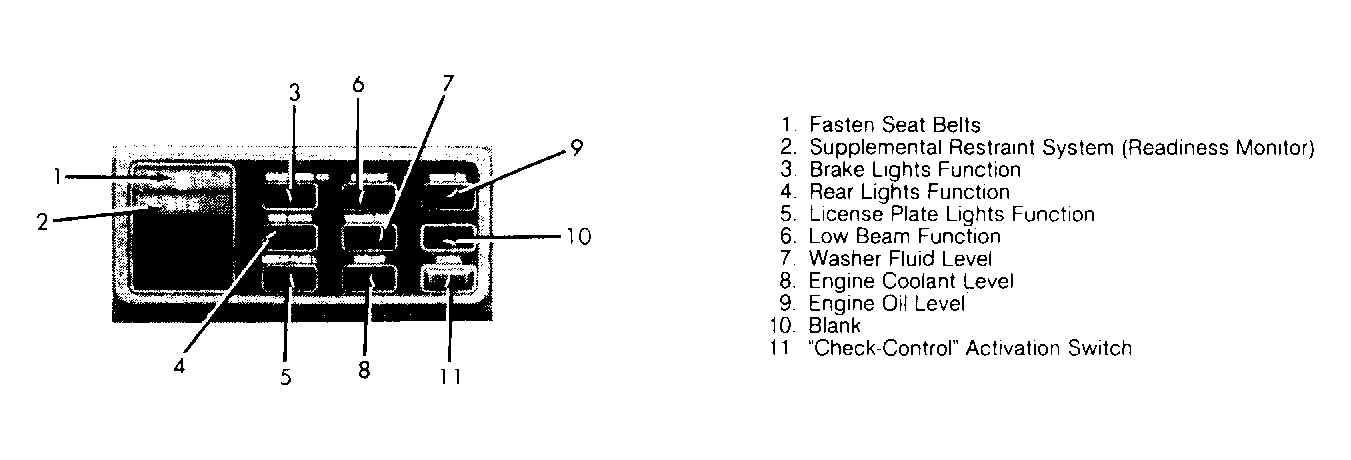

Fig 2: "Check-Control" Panel
G90H01178Courtesy of BMW OF NORTH AMERICA,INC.
