Wiring Diagrams

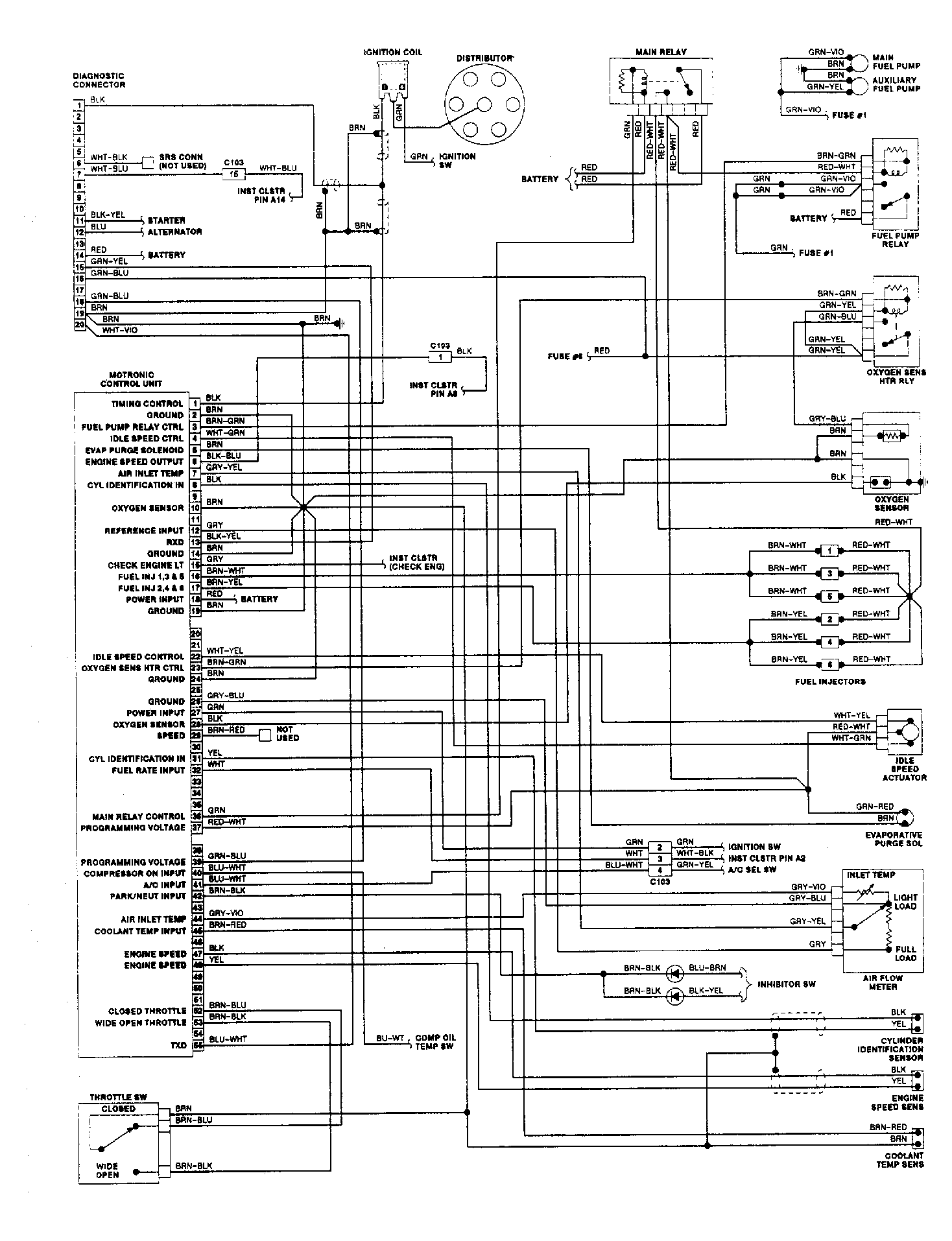

Fig 1: 528e Wiring Diagram

G94381

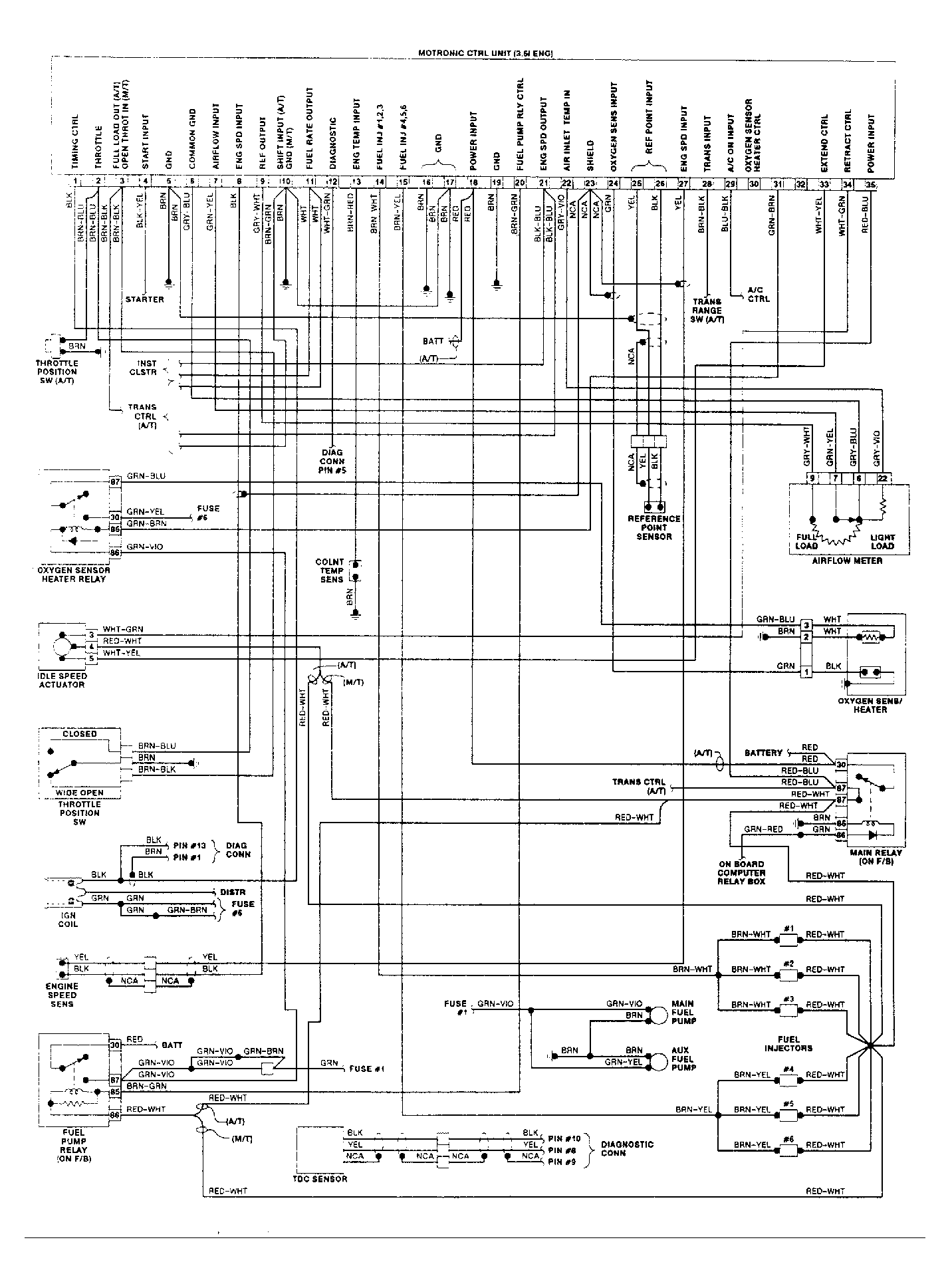

Fig 2: 535i Wiring Diagram

G94382

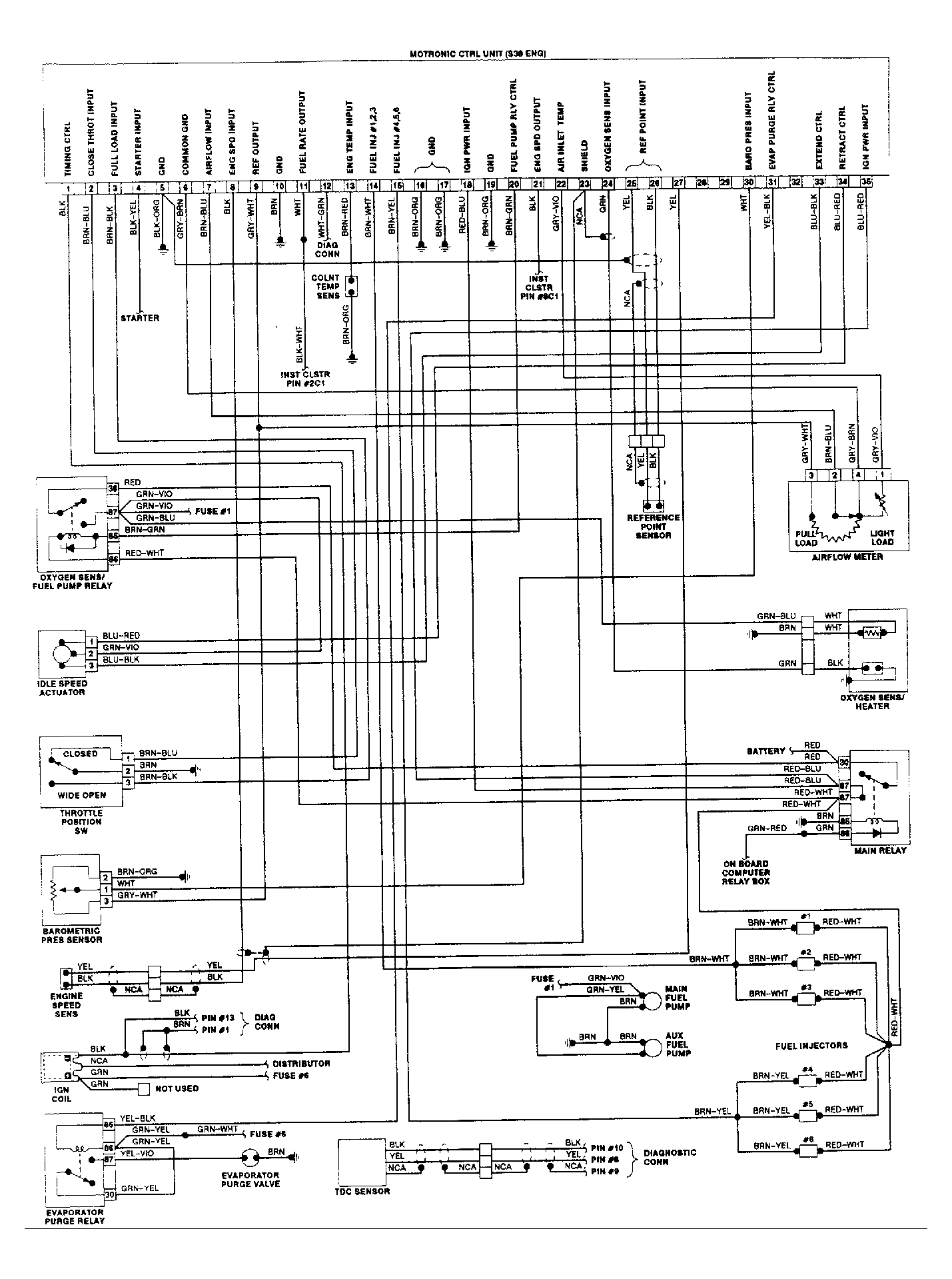

Fig 3: 535is Wiring Diagram

G94383

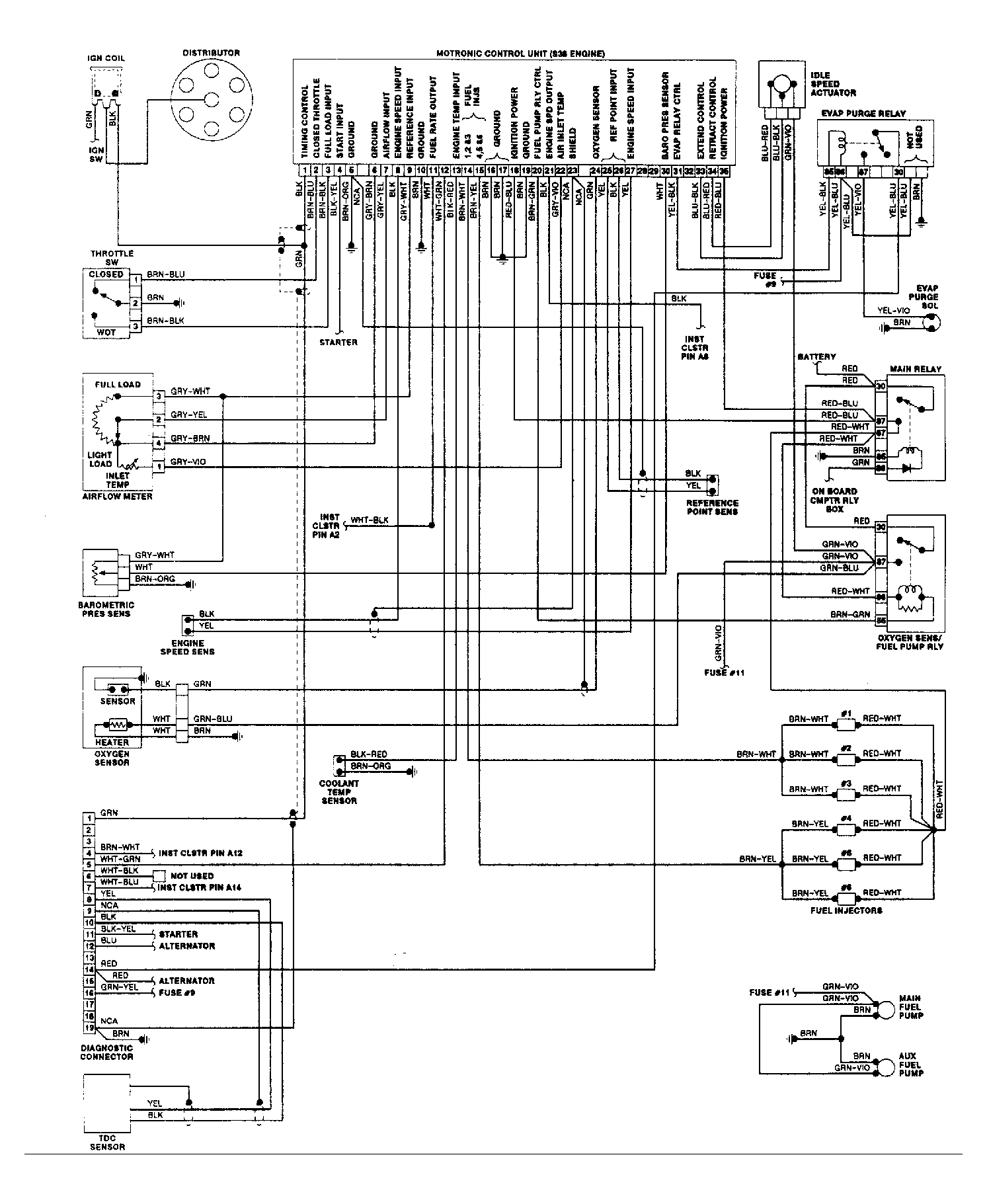

Fig 4: 635CSi Wiring Diagram

G94384

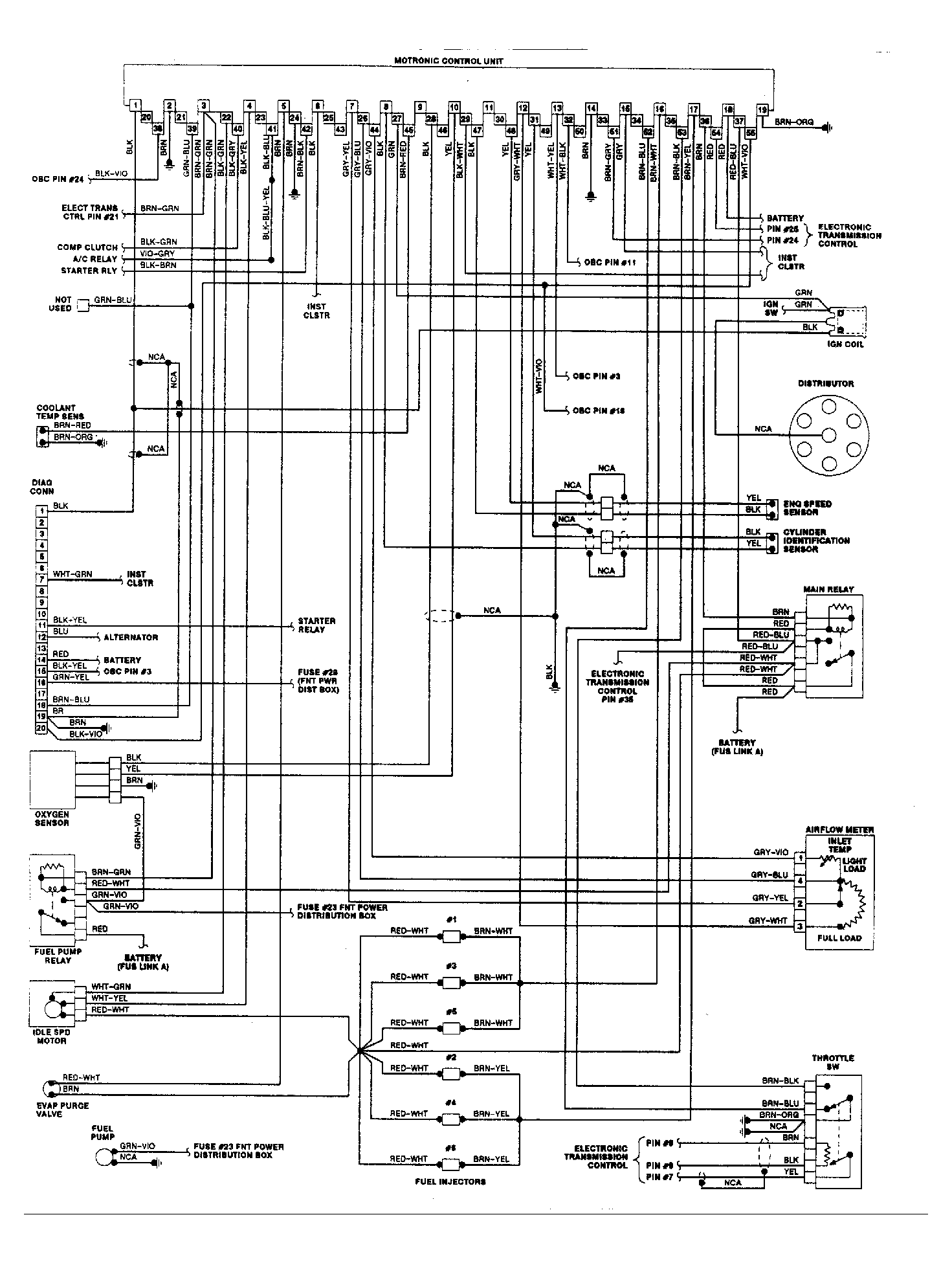

Fig 5: 735CSi Wiring Diagram

G94385
