Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component	Component Location
A/C In-Line Fuse	At left side of evaporator housing.

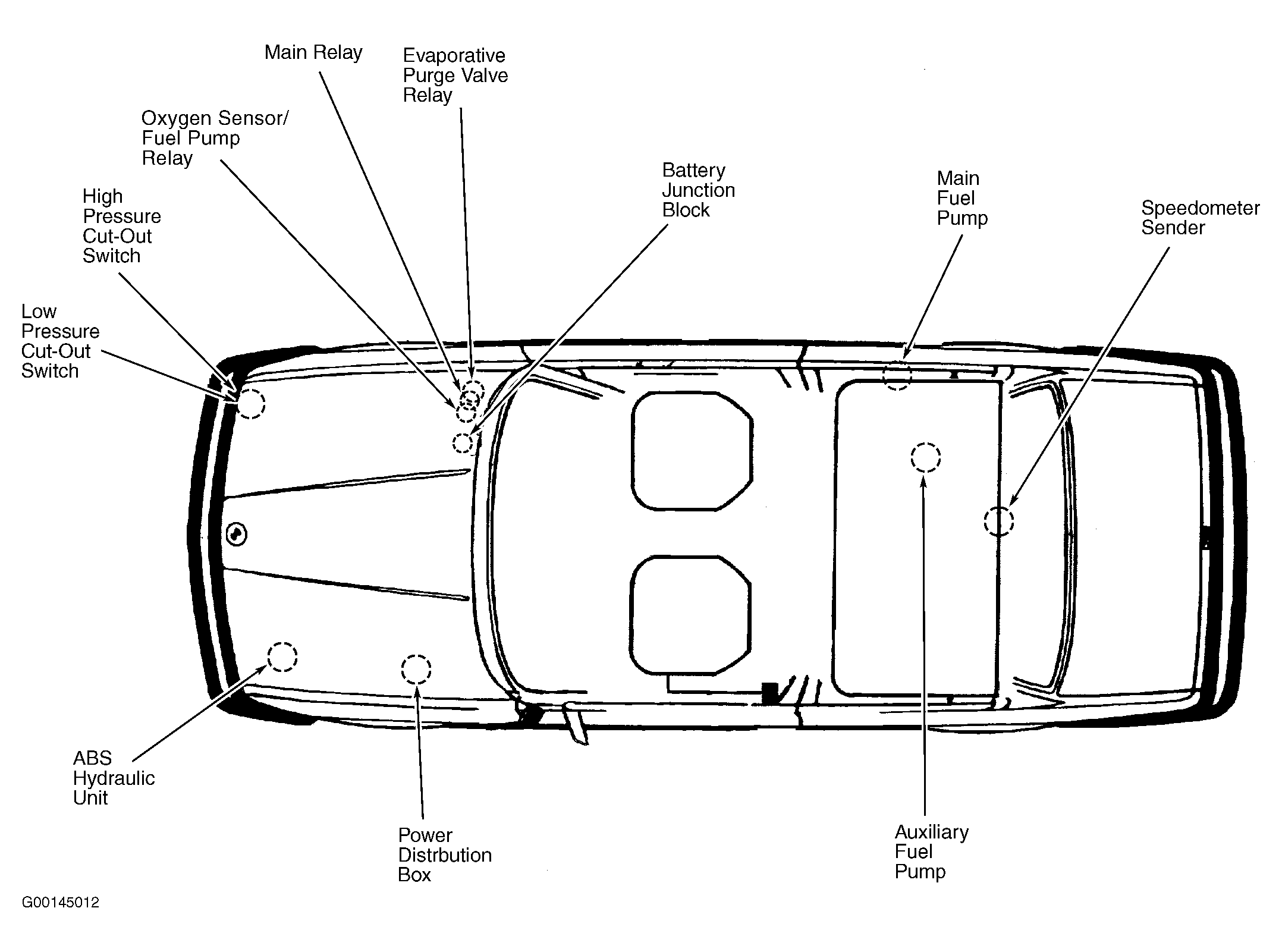

Battery Junction Block	On right side of firewall, behind cover. See Figure .

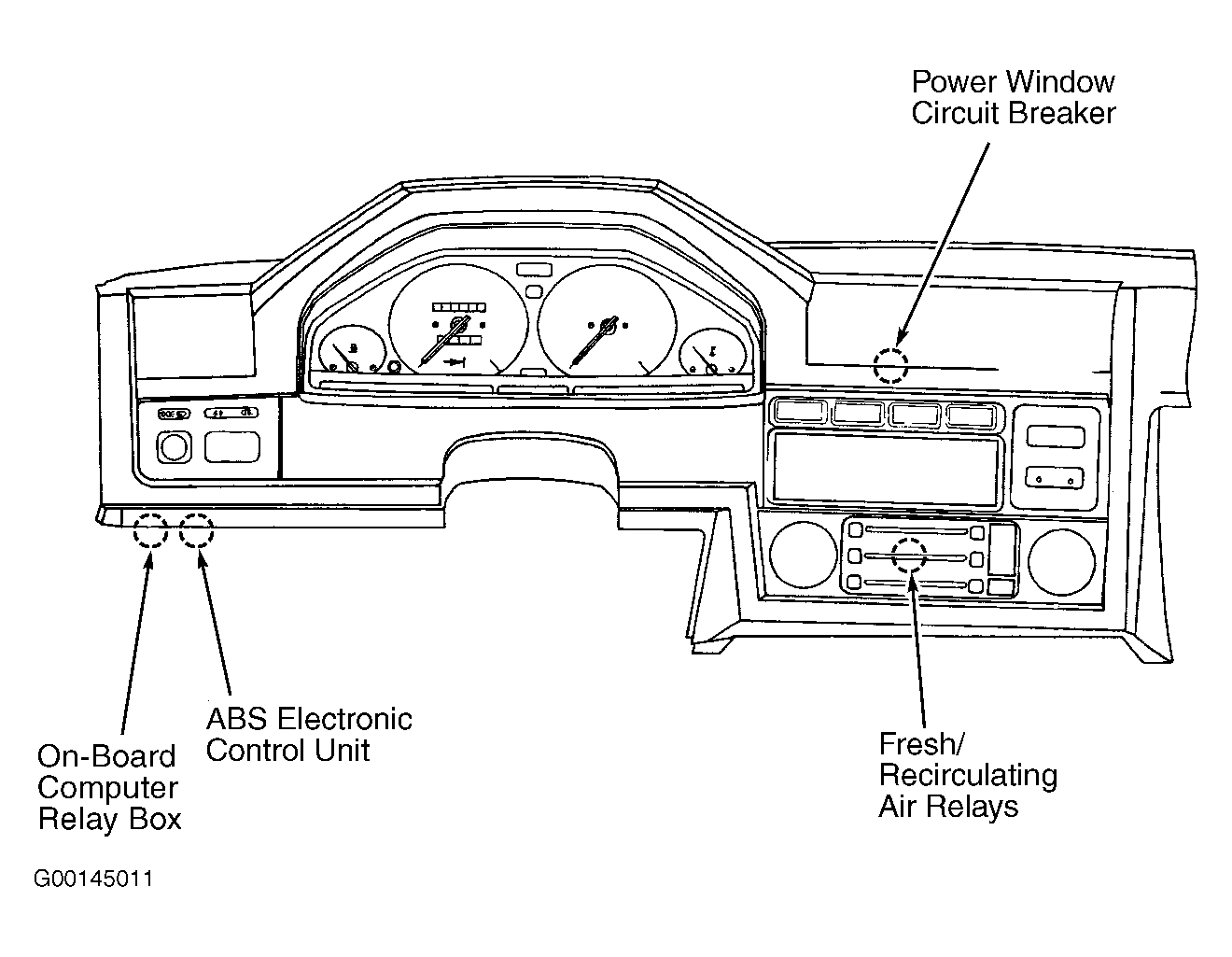

On-Board Computer Relay Box	Above hood release. See Figure .
Power Distribution Box	In left rear of engine compartment. See Figure .
Power Window Circuit Breaker	Above radio. See Figure .
