Wiring Diagrams

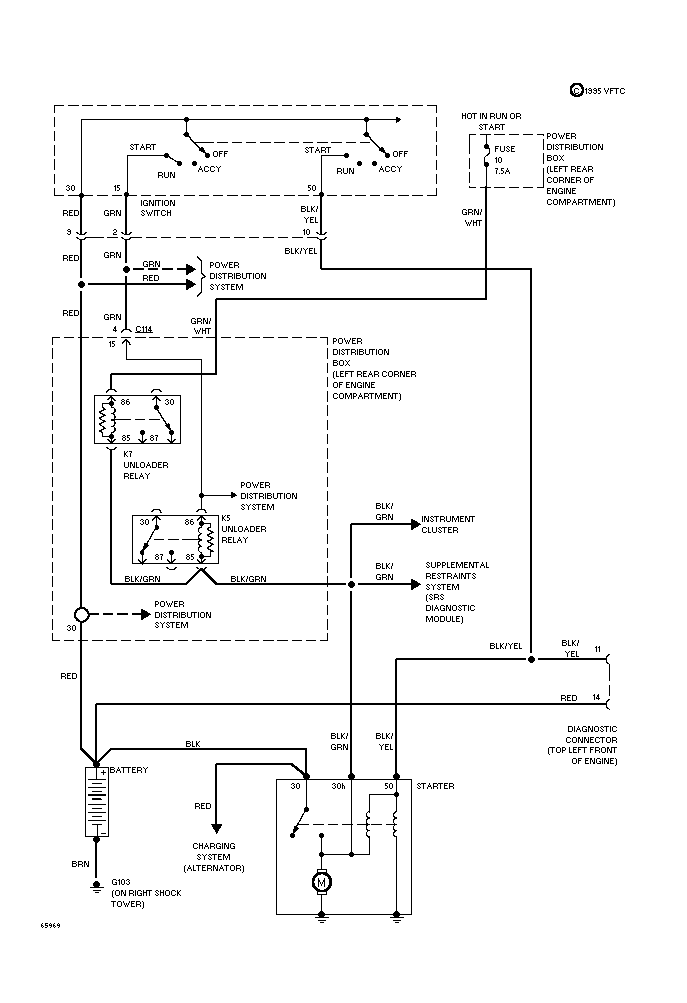

Fig 1: Starting System Wiring Diagram (318i & 318is)

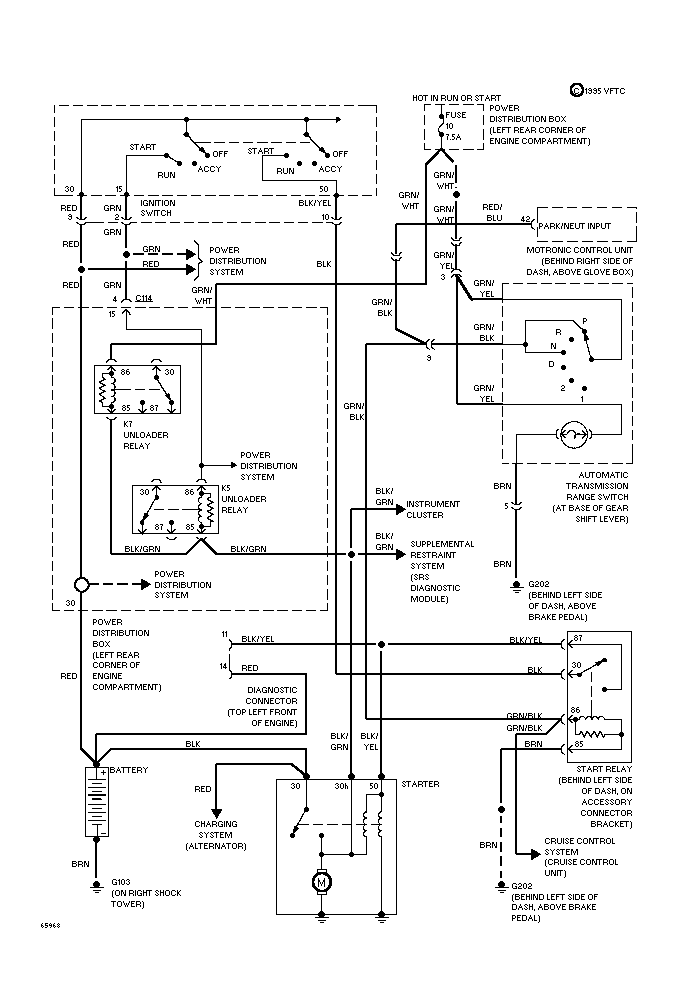

Fig 2: Starting System Wiring Diagram (325i & 325is)

Fig 3: Starting System Wiring Diagram (325iC A/T)

Fig 4: Starting System Wiring Diagram (325iC M/T)
